Giới thiệu
Sau khi hiểu tổng quan Payment Gateway, bài này deep-dive vào quy trình xử lý thanh toán — từ authorization đến settlement. Đây là phần phức tạp nhất và đòi hỏi sự chính xác tuyệt đối vì liên quan trực tiếp đến tiền.
1. Authorization Flow
1.1 Card Authorization
┌──────────┐ ┌──────────┐ ┌──────────┐ ┌──────────┐ ┌──────────┐
│ Customer │ │ Merchant │ │ Acquirer │ │ Card │ │ Issuer │
│ │ │ │ │ Bank │ │ Network │ │ Bank │
└────┬─────┘ └────┬─────┘ └────┬─────┘ └────┬─────┘ └────┬─────┘
│ │ │ │ │
│ Card Info │ │ │ │
├─────────────►│ │ │ │
│ │ Auth Req │ │ │
│ ├─────────────►│ │ │
│ │ │ Auth Req │ │
│ │ ├─────────────►│ │
│ │ │ │ Auth Req │
│ │ │ ├─────────────►│
│ │ │ │ │
│ │ │ │ Check: │
│ │ │ │ - Balance │
│ │ │ │ - Fraud │
│ │ │ │ - Limits │
│ │ │ │ │
│ │ │ │ Auth Resp │
│ │ │ │◄─────────────┤
│ │ │ Auth Resp │ │
│ │ │◄─────────────┤ │
│ │ Auth Resp │ │ │
│ │◄─────────────┤ │ │
│ Result │ │ │ │
│◄─────────────┤ │ │ │
1.2 Authorization Response Codes
| Code | Meaning | Action |
|---|---|---|
00 | Approved | Proceed with capture |
05 | Do not honor | Terminal - don't retry |
14 | Invalid card number | Terminal |
51 | Insufficient funds | Terminal |
54 | Expired card | Terminal |
61 | Exceeds limit | Can retry with lower amount |
91 | Issuer unavailable | Retry later |
1.3 Auth Hold Management
Authorization creates a "hold" on customer funds:
Timeline:
Day 0: Auth $100 ──► Hold $100 on card
Day 1-7: Hold active, merchant can capture
Day 7+: Hold expires (auto-release by issuer)
Rules:
├── Auth hold duration varies by card network
│ ├── Visa: 7-30 days
│ ├── Mastercard: 7-30 days
│ └── NAPAS: Varies by issuer
├── Partial capture: Can capture <= auth amount
├── Multi-capture: Some networks support partial captures
└── Void: Cancel auth before capture (release hold)
2. Capture Process
2.1 Capture Strategies
1. Auto-capture (immediate):
Auth ──► Immediate Capture
Use case: Digital goods, instant delivery
2. Manual capture (delayed):
Auth ──► Wait ──► Capture when ready
Use case: Physical goods (capture on ship)
3. Partial capture:
Auth $100 ──► Capture $80 (partial shipment)
Remaining $20 ──► Void or capture later
4. Multi-capture:
Auth $100 ──► Capture $50 ──► Capture $30 ──► Capture $20
Use case: Marketplace with multiple sellers
2.2 Capture Implementation
public class CaptureService {
@Transactional
public CaptureResult capture(String paymentId, Money amount) {
var payment = paymentRepository.findById(paymentId)
.orElseThrow(() -> new PaymentNotFoundException(paymentId));
// Validate
if (payment.getStatus() != PaymentStatus.AUTHORIZED) {
throw new InvalidStateException("Payment must be AUTHORIZED");
}
if (amount.isGreaterThan(payment.remainingCapturable())) {
throw new AmountExceedsAuthException();
}
// Capture with PSP
var pspResult = pspAdapter.capture(payment, amount);
// Update payment
payment.capture(amount, pspResult);
paymentRepository.save(payment);
// Publish event
eventBus.publish(new PaymentCapturedEvent(payment, amount));
return CaptureResult.success(payment);
}
}
3. Settlement Process
3.1 Settlement Flow
Settlement = Transfer of actual funds from issuer to acquirer to merchant
Daily Settlement Cycle:
┌─────────────────────────────────────────────────────────┐
│ │
│ 23:00 Cut-off time │
│ │ │
│ ▼ │
│ Batch all captured transactions for the day │
│ │ │
│ ▼ │
│ Submit settlement file to acquirer/network │
│ │ │
│ ▼ │
│ T+1: Clearing (acquirer receives funds from network) │
│ │ │
│ ▼ │
│ T+1~T+3: Payout to merchant account │
│ │ │
│ ▼ │
│ Settlement complete │
│ │
└─────────────────────────────────────────────────────────┘
3.2 Settlement Architecture
┌─────────────────────────────────────────────────────────┐
│ SETTLEMENT ENGINE │
│ │
│ ┌──────────┐ ┌──────────┐ ┌──────────────────┐ │
│ │ Batch │ │ Fee │ │ Payout │ │
│ │ Builder │───►│ Engine │───►│ Calculator │ │
│ └──────────┘ └──────────┘ └────────┬─────────┘ │
│ │ │
│ ┌──────────┐ ┌──────────┐ ┌────────▼─────────┐ │
│ │ Report │◄───│Reconcile │◄───│ Transfer │ │
│ │ Generator│ │ Engine │ │ Executor │ │
│ └──────────┘ └──────────┘ └──────────────────┘ │
└─────────────────────────────────────────────────────────┘
3.3 Fee Calculation
Transaction Amount: 1,000,000 VND
Fee Breakdown:
├── Interchange fee (issuer): 1.5% = 15,000 VND
├── Network fee (Visa/MC): 0.2% = 2,000 VND
├── Acquirer fee: 0.3% = 3,000 VND
├── Gateway fee (our platform): 0.5% = 5,000 VND
└── Total fees: 2.5% = 25,000 VND
Merchant receives: 975,000 VND
public record SettlementCalculation(
Money grossAmount,
Money interchangeFee,
Money networkFee,
Money acquirerFee,
Money platformFee,
Money netAmount
) {
public static SettlementCalculation calculate(
Payment payment, MerchantFeeConfig config) {
Money gross = payment.getCapturedAmount();
Money interchange = gross.multiply(config.interchangeRate());
Money network = gross.multiply(config.networkRate());
Money acquirer = gross.multiply(config.acquirerRate());
Money platform = gross.multiply(config.platformRate());
Money net = gross.subtract(interchange)
.subtract(network)
.subtract(acquirer)
.subtract(platform);
return new SettlementCalculation(
gross, interchange, network, acquirer, platform, net);
}
}
4. Batch Processing
4.1 End-of-Day Batch
@Scheduled(cron = "0 0 23 * * *") // 23:00 daily
public void runDailySettlement() {
var cutoffTime = LocalDateTime.now();
var transactions = paymentRepository
.findCapturedNotSettled(cutoffTime);
// Group by merchant
var byMerchant = transactions.stream()
.collect(Collectors.groupingBy(Payment::getMerchantId));
for (var entry : byMerchant.entrySet()) {
var merchantId = entry.getKey();
var payments = entry.getValue();
// Calculate settlement
var settlement = settlementService
.createSettlement(merchantId, payments);
// Generate settlement file
settlementFileGenerator.generate(settlement);
// Queue payout
payoutService.queuePayout(settlement);
}
}
4.2 Real-time Settlement
Xu hướng mới với instant payments (VietQR, UPI):
Traditional: Capture → T+1~T+3 Settlement
Real-time: Capture → Instant Settlement (< 30 seconds)
Real-time settlement requires:
├── Real-time clearing network (NAPAS for Vietnam)
├── Pre-funded settlement accounts
├── Real-time balance management
└── Instant notification to merchant
5. Refund Processing
5.1 Refund Types
Full Refund: Payment $100 → Refund $100
Partial Refund: Payment $100 → Refund $30 (keep $70)
Multiple Refund: Payment $100 → Refund $30 → Refund $20 → ... (total ≤ $100)
5.2 Refund Flow
@Transactional
public RefundResult processRefund(String paymentId, Money amount, String reason) {
var payment = paymentRepository.findById(paymentId)
.orElseThrow(() -> new PaymentNotFoundException(paymentId));
// Validate
if (!payment.isRefundable()) {
throw new PaymentNotRefundableException();
}
if (amount.isGreaterThan(payment.refundableAmount())) {
throw new RefundAmountExceedsException();
}
// Process refund with PSP
var pspResult = pspAdapter.refund(payment, amount);
// Create refund record
var refund = Refund.create(payment, amount, reason, pspResult);
refundRepository.save(refund);
// Update payment
payment.addRefund(refund);
paymentRepository.save(payment);
// Reverse ledger entries
eventBus.publish(new RefundProcessedEvent(refund));
return RefundResult.success(refund);
}
Tổng kết

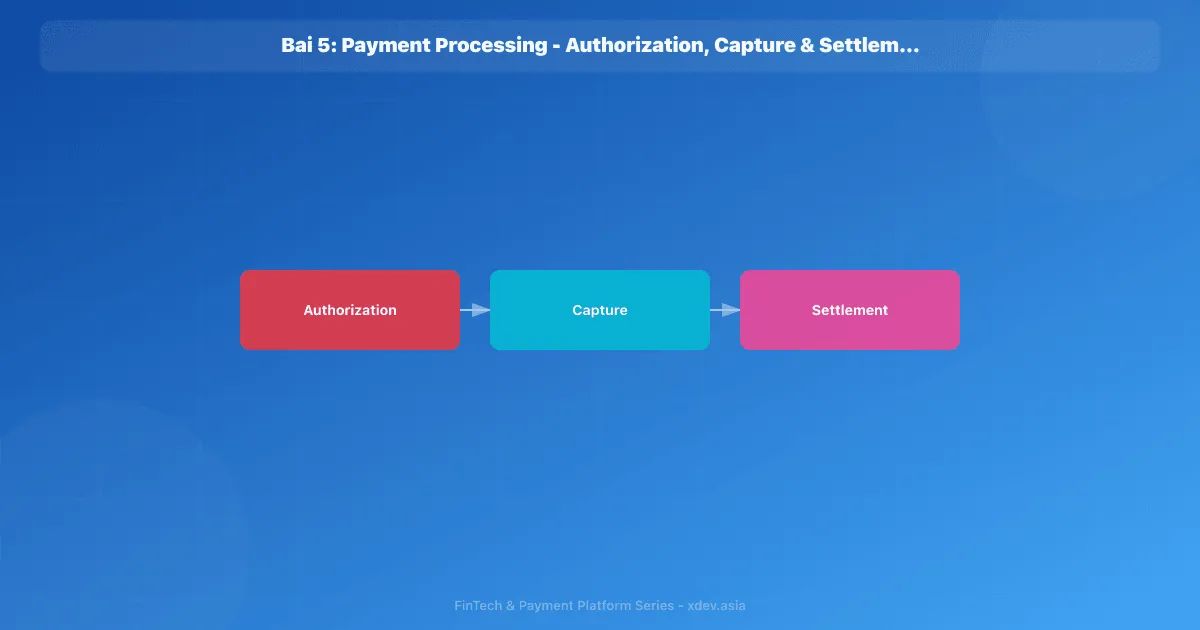

Payment processing là quy trình phức tạp với nhiều bước:
- Authorization: Reserve funds, validate card
- Capture: Collect authorized funds (immediate hoặc delayed)
- Settlement: Actual fund transfer qua clearing network
- Refund: Reverse the payment flow
Key principles: idempotency ở mọi bước, state machine rõ ràng, audit trail cho mỗi thay đổi.
Bài tiếp theo: Multi-PSP Integration — thiết kế abstraction layer để tích hợp nhiều PSPs (VNPay, MoMo, Stripe) với smart routing.
