Bài 11: Troubleshooting Workloads

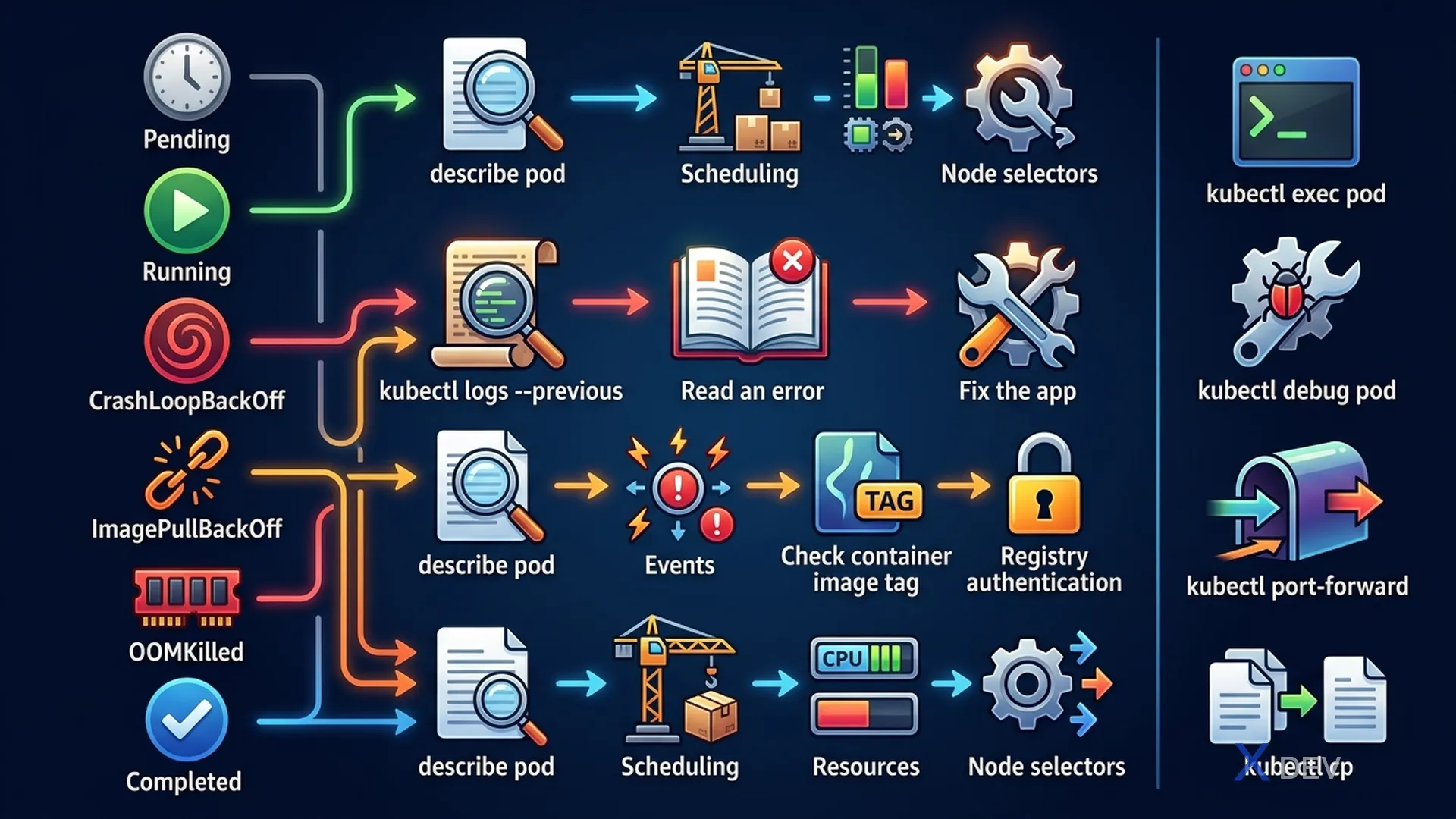

1. Pod Debug Workflow

Systematic Pod Troubleshooting:

  kubectl get pod POD_NAME
     │
     ├── Pending → Node issues or PVC not bound
     ├── Running but not working → Check logs, exec
     ├── CrashLoopBackOff → App crashing
     ├── ImagePullBackOff → Image or registry issue
     └── Error → Start/init failure

  For any issue → next step:
  kubectl describe pod POD_NAME
  (read Events section at bottom!)

  For logs:
  kubectl logs POD_NAME
  kubectl logs POD_NAME --previous  (after crash)
  kubectl logs POD_NAME -c CONTAINER  (multi-container)

2. Common Pod Issues

State	Nguyên nhân	Debug
Pending	Không schedule được	describe pod → Events: Insufficient CPU/memory hoặc No nodes match affinity
ImagePullBackOff	Image không tồn tại / registry auth	Check image name typo, imagePullSecrets
CrashLoopBackOff	App crash liên tục	kubectl logs --previous, check app exit code
OOMKilled	Vượt memory limit	kubectl describe pod → Container Reason: OOMKilled
CreateContainerError	Volume mount, ConfigMap, Secret không tồn tại	describe pod Events

Exam tip: kubectl describe pod Events section là nơi quan trọng nhất để debug. CKA tasks thường yêu cầu bạn fix một broken pod — thường là typo trong image name, sai ConfigMap name, hoặc Port conflict.

3. Exec & Debug

# Exec into running container
kubectl exec -it POD_NAME -- /bin/sh
kubectl exec -it POD_NAME -c CONTAINER_NAME -- bash

# Debug with ephemeral container (v1.23+)
kubectl debug -it POD_NAME --image=busybox --target=app

# Copy files from/to pod
kubectl cp POD_NAME:/var/log/app.log ./app.log
kubectl cp ./config.yaml POD_NAME:/tmp/config.yaml

# Port-forward for quick testing
kubectl port-forward pod/POD_NAME 8080:80
kubectl port-forward svc/SERVICE_NAME 8080:80

4. Deployment Issues

# Check deployment status
kubectl rollout status deployment/myapp
kubectl get replicaset -l app=myapp  # Check RS history

# Pod template issue: deployment creates RS but pods fail
kubectl describe replicaset RS_NAME  # Check pod template errors

# Deployment stuck in progress?
kubectl describe deployment myapp | grep -A5 Conditions

# Check events at deployment level
kubectl get events --field-selector involvedObject.name=myapp --sort-by='.lastTimestamp'

5. Service Connectivity Debug

Debug service connectivity:

1. Check endpoints
   kubectl get endpoints SERVICE_NAME
   → Empty: selector mismatch

2. Test from within cluster
   kubectl run test --image=busybox --rm -it -- wget -O- http://SERVICE_NAME:PORT

3. Check kube-proxy
   kubectl get pods -n kube-system -l k8s-app=kube-proxy

4. Check iptables (on node)
   iptables -t nat -L KUBE-SERVICES | grep SERVICE_NAME

6. Cheat Sheet

Task	Command
Previous container logs	kubectl logs POD --previous
All events in namespace	kubectl get events --sort-by='.lastTimestamp'
Quick connectivity test	kubectl run test --image=busybox --rm -it -- wget -qO- URL
Check pod exit code	kubectl describe pod | grep Exit Code
Multi-container logs	kubectl logs POD -c CONTAINER

7. Practice Questions

Q1: A Pod is in CrashLoopBackOff. The application log shows "Error: failed to connect to database at localhost:5432". What is the issue?

• A) The database Service is misconfigured
• B) The app uses localhost to reach the database, but sidecar containers don't have a database running ✓
• C) The Pod lacks sufficient memory
• D) The database password in the Secret is incorrect

Explanation: Pods share a network namespace, so "localhost" within a Pod only reaches other containers in the SAME Pod. If the database is in a separate Pod, the app should use the Service DNS name (e.g., pg-service.namespace.svc.cluster.local), not localhost.

Q2: A Deployment's Pods are stuck in ImagePullBackOff. The image name is "mycompany/private-app:1.2". What should you verify first?

• A) The image exists on Docker Hub with exact tag
• B) The Deployment has an imagePullSecrets referencing registry credentials ✓
• C) The node has enough disk space
• D) The Service is correctly configured

Explanation: Private registries require authentication. The Pod must have an imagePullSecrets field referencing a Secret with registry credentials (type: kubernetes.io/dockerconfigjson). Also verify the image name and tag are correct.

Q3: You run "kubectl get endpoints myservice" and the result shows "<none>". What is the most likely problem?

• A) The Service port is wrong
• B) No Pods with labels matching the Service selector are in Ready state ✓
• C) The Ingress is misconfigured
• D) kube-proxy is not running

Explanation: Endpoints are populated when Pods match the Service selector AND are Ready. Common causes: label mismatch (typo in selector); all Pods are Pending/CrashLooping so not Ready; wrong namespace. Check: kubectl get pods -l APP=LABEL --show-labels.
