Bài 19: GraphQL Federation — Unified API cho Micro Frontend

Thiết kế hệ thống Microservices & Micro Frontend — Từ cơ bản đến Production

Phần 6: API Gateway & BFF Layer

xdev.asia

Giới thiệu

GraphQL Federation cho phép mỗi microservice expose một subgraph, và Router tự động compose thành unified supergraph. Frontend chỉ cần 1 endpoint để query data từ mọi service.

---

1. Vấn đề: Multiple GraphQL Endpoints

❌ Mỗi service có GraphQL endpoint riêng:
Frontend → product.api.com/graphql (Product schema)
Frontend → user.api.com/graphql (User schema)
Frontend → order.api.com/graphql (Order schema)

→ Frontend phải biết endpoint nào chứa data gì
→ Không thể query cross-service trong 1 request
→ Ví dụ: Order + Product + User = 3 requests

---

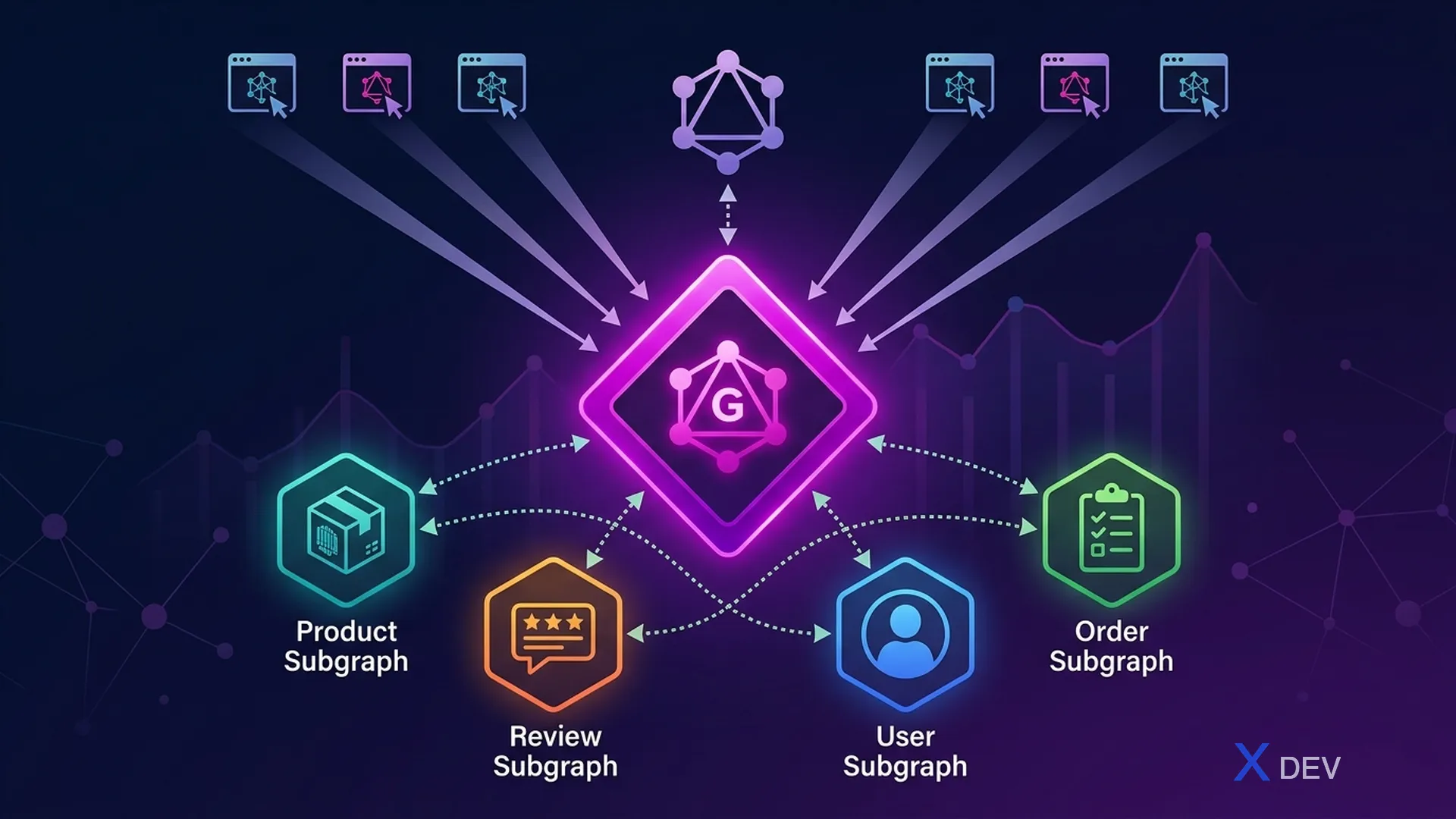

2. GraphQL Federation Architecture

✅ Unified Supergraph:

┌─────────────┐
│   Frontend  │
│  1 endpoint │
└──────┬──────┘
       │
       ▼
┌──────────────────────┐
│   Apollo Router      │
│   (Supergraph)       │
│   gateway.api.com    │
└──┬────────┬────────┬─┘
   │        │        │
   ▼        ▼        ▼
┌──────┐ ┌──────┐ ┌──────┐
│Product│ │ User │ │Order │
│Subgra│ │Subgra│ │Subgra│
│  ph  │ │  ph  │ │  ph  │
└──────┘ └──────┘ └──────┘

1 query → Router splits → Subgraphs → Router merges → 1 response

---

3. Subgraph Definition

3.1 Product Subgraph

# Product Service subgraph
type Product @key(fields: "id") {
  id: ID!
  name: String!
  price: Float!
  description: String
  category: Category!
}

type Category {
  id: ID!
  name: String!
}

type Query {
  product(id: ID!): Product
  products(limit: Int, offset: Int): [Product!]!
}

3.2 Review Subgraph (extends Product)

# Review Service subgraph — extends Product
type Product @key(fields: "id") {
  id: ID!
  reviews: [Review!]!
  averageRating: Float
}

type Review {
  id: ID!
  rating: Int!
  comment: String
  author: User!
}

type Query {
  reviews(productId: ID!): [Review!]!
}

3.3 Federated Query

# Frontend query — Router handles cross-service resolution
query ProductPage($id: ID!) {
  product(id: $id) {
    id              # → Product Subgraph
    name            # → Product Subgraph
    price           # → Product Subgraph
    reviews {       # → Review Subgraph
      rating
      comment
      author {      # → User Subgraph
        name
        avatar
      }
    }
    averageRating   # → Review Subgraph
  }
}

Router tự động:

1. Query Product Subgraph → lấy product data
2. Query Review Subgraph → lấy reviews (dùng product.id)
3. Query User Subgraph → lấy author info (dùng review.author.id)
4. Merge tất cả → trả về 1 response

---

4. Schema Stitching vs Federation

	Schema Stitching	Federation
Ownership	Gateway owns schema	Services own schema
Coupling	High (gateway biết về services)	Low (services tự declare)
Scalability	Gateway bottleneck	Distributed
Evolution	Hard (central change)	Easy (service-level)
Verdict	❌ Legacy	✅ Recommended

---

5. Performance Considerations

5.1 Query Plan Optimization

Router tạo query plan tối ưu:
─ Parallel: Product + User subgraphs (independent)
─ Sequential: Reviews → after Product (needs product.id)

5.2 Dataloader Pattern

// Trong Review Subgraph, batch user lookups
const userLoader = new DataLoader(async (userIds) => {
  const users = await userService.getUsers(userIds);
  return userIds.map(id => users.find(u => u.id === id));
});

// Resolve author field
Review: {
  author: (review) => userLoader.load(review.authorId)
}

5.3 Caching

Persisted Queries: Client gửi query hash thay vì full query
Automatic Persisted Queries (APQ): Router cache query plans
CDN caching: @cacheControl directive

---

6. Khi nào dùng Federation?

✅ Dùng khi:
- Nhiều microservices cần unified GraphQL API
- Frontend teams muốn 1 endpoint
- Complex, nested data relationships
- Multiple frontend clients

❌ Không cần khi:
- Chỉ có 1-2 services (đơn giản quá)
- REST đã đủ tốt
- Team chưa quen GraphQL
- Performance-critical (thêm latency qua Router)

---

Tóm tắt

• Federation = mỗi service own subgraph, Router compose supergraph
• @key directive cho entity reference across subgraphs
• Router tự động split, resolve, merge queries
• DataLoader pattern tránh N+1 problem
• Dùng khi cần unified GraphQL API cho nhiều services

---

Bài tiếp theo: Bài 20: Testing Microservices — Unit, Integration & E2E
