1. Tổng quan HIPAA Security Rule §164.312
HIPAA Security Rule yêu cầu các tổ chức xử lý ePHI (electronic Protected Health Information) phải triển khai Technical Safeguards — các biện pháp kỹ thuật bảo vệ dữ liệu y tế điện tử. Đây là phần quan trọng nhất đối với developers và engineers.

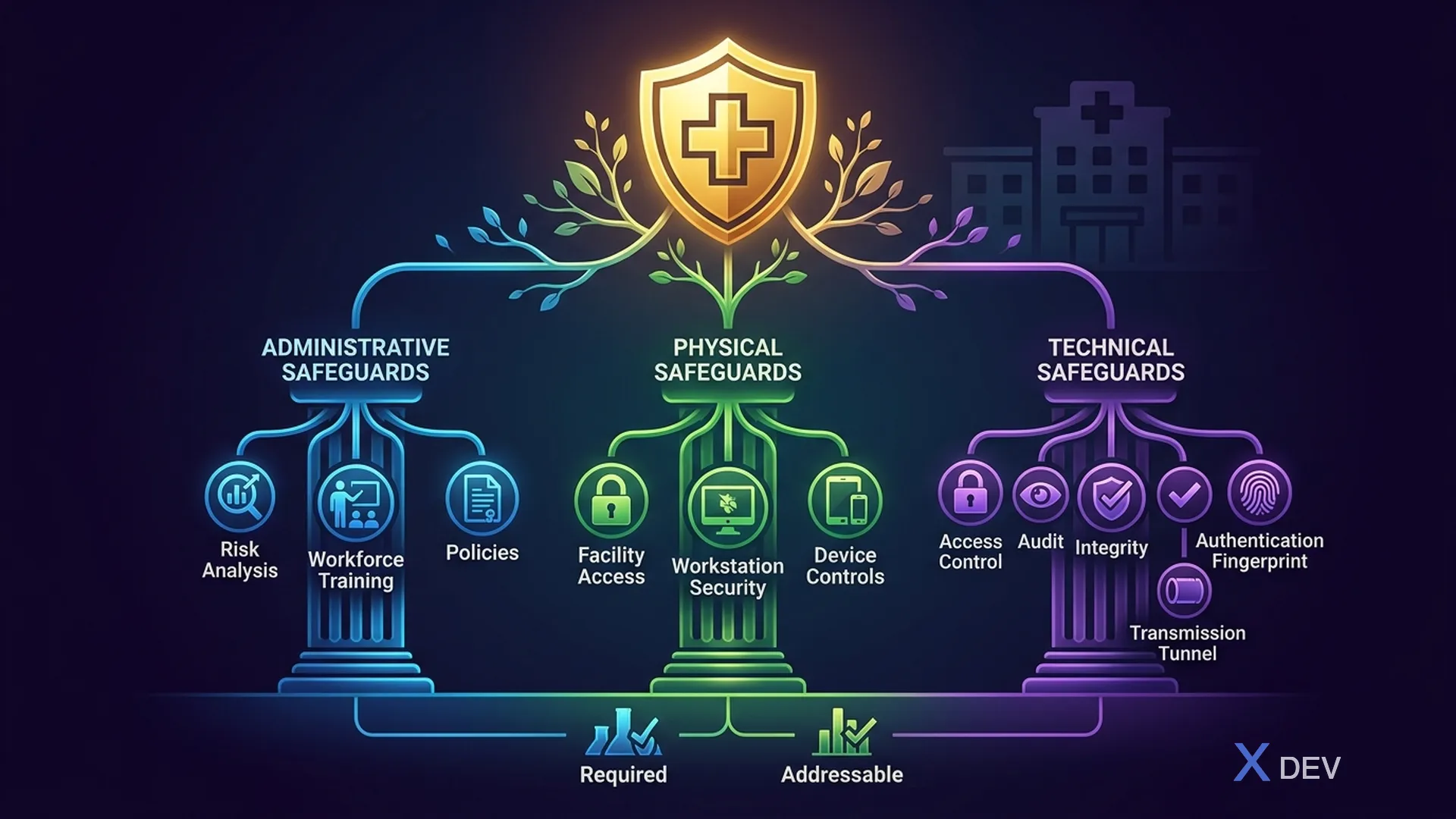

1.1. Cấu trúc HIPAA Security Rule
HIPAA Security Rule §164.302-318:
- §164.308 Administrative Safeguards
- Risk Analysis
- Workforce Security
- Information Access Management
- Security Awareness Training
- Security Incident Procedures
- Contingency Plan
- Evaluation
- §164.310 Physical Safeguards
- Facility Access Controls
- Workstation Use & Security
- Device and Media Controls
- §164.312 Technical Safeguards ← BÀI NÀY
- Access Control (§164.312(a))
- Audit Controls (§164.312(b))
- Integrity Controls (§164.312(c))
- Person/Entity Authentication (§164.312(d))
- Transmission Security (§164.312(e))
- §164.314 Organizational Requirements
- Business Associate Agreements (BAA)
- Group Health Plan Requirements
1.2. Required vs Addressable
HIPAA phân loại implementation specifications thành hai loại:
| Loại | Ý nghĩa | Hành động |
|---|---|---|
| Required (R) | BẮT BUỘC triển khai, không có ngoại lệ | Phải implement đúng specification |
| Addressable (A) | Phải đánh giá và triển khai nếu hợp lý | Nếu không implement, phải document lý do và biện pháp thay thế |
Quan trọng: "Addressable" KHÔNG có nghĩa là "optional". Tổ chức phải assess, implement hoặc document alternative.
2. Access Control — §164.312(a)(1)
Standard: Implement technical policies and procedures for electronic information systems that maintain ePHI to allow access only to those persons or software programs that have been granted access rights.
2.1. Unique User Identification — §164.312(a)(2)(i) [Required]
"Assign a unique name and/or number for identifying and tracking user identity."
Implementation với Keycloak:
package vn.hospital.compliance.access;
import io.quarkus.security.identity.SecurityIdentity;
import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;
import org.eclipse.microprofile.jwt.JsonWebToken;
import org.jboss.logging.Logger;
/**
* HIPAA §164.312(a)(2)(i) - Unique User Identification
* Mỗi user phải có unique identifier để tracking.
*/
@ApplicationScoped
public class UniqueUserIdentificationService {
private static final Logger LOG = Logger.getLogger(UniqueUserIdentificationService.class);
@Inject
JsonWebToken jwt;
@Inject
SecurityIdentity identity;
/**
* Lấy unique user ID từ JWT token (Keycloak sub claim).
* Format: UUID assigned bởi Keycloak, không trùng lặp.
*/
public String getUniqueUserId() {
String userId = jwt.getSubject(); // Keycloak UUID
if (userId == null || userId.isBlank()) {
throw new SecurityException("HIPAA Violation: No unique user ID in token");
}
return userId;
}
/**
* Lấy username (preferred_username) cho audit display.
*/
public String getUsername() {
return jwt.getClaim("preferred_username");
}
/**
* Lấy toàn bộ user context cho audit trail.
*/
public UserAuditContext getAuditContext() {
return new UserAuditContext(
jwt.getSubject(),
jwt.getClaim("preferred_username"),
jwt.getClaim("email"),
jwt.getGroups(),
jwt.getClaim("department"),
jwt.getClaim("facility_id"),
jwt.getIssuedAtTime(),
jwt.getExpirationTime()
);
}
}
Keycloak Realm Configuration:
{
"realm": "healthcare",
"registrationAllowed": false,
"editUsernameAllowed": false,
"duplicateEmailsAllowed": false,
"loginWithEmailAllowed": false,
"attributes": {
"userProfileEnabled": "true"
},
"users": [
{
"username": "dr.nguyen",
"enabled": true,
"email": "[email protected]",
"firstName": "Nguyễn",
"lastName": "Văn A",
"attributes": {
"employee_id": ["EMP-2024-0001"],
"department": ["cardiology"],
"facility_id": ["HOSP-HCM-01"],
"npi_number": ["1234567890"],
"license_number": ["VN-MD-2020-12345"]
},
"credentials": [
{
"type": "password",
"value": "CHANGE_ME",
"temporary": true
}
],
"requiredActions": ["UPDATE_PASSWORD", "CONFIGURE_TOTP"],
"realmRoles": ["physician"],
"clientRoles": {
"patient-service": ["patient_read", "patient_write"],
"lab-service": ["lab_order", "lab_read"]
}
}
]
}
2.2. Emergency Access Procedure — §164.312(a)(2)(ii) [Required]
"Establish (and implement as needed) procedures for obtaining necessary ePHI during an emergency."
package vn.hospital.compliance.access;
import io.quarkus.hibernate.orm.panache.PanacheEntity;
import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;
import jakarta.persistence.*;
import jakarta.transaction.Transactional;
import org.jboss.logging.Logger;
import java.time.Duration;
import java.time.Instant;
import java.util.UUID;
/**
* HIPAA §164.312(a)(2)(ii) - Emergency Access Procedure
* "Break the Glass" mechanism cho trường hợp khẩn cấp.
*/
@ApplicationScoped
public class EmergencyAccessService {
private static final Logger LOG = Logger.getLogger(EmergencyAccessService.class);
private static final Duration EMERGENCY_ACCESS_DURATION = Duration.ofHours(4);
@Inject
EntityManager entityManager;
@Inject
AuditService auditService;
@Inject
NotificationService notificationService;
/**
* "Break the Glass" - cấp quyền truy cập khẩn cấp.
* Automatic audit + notification cho Privacy Officer.
*/
@Transactional
public EmergencyAccessGrant grantEmergencyAccess(EmergencyAccessRequest request) {
// 1. Validate request
validateEmergencyRequest(request);
// 2. Create emergency access grant
EmergencyAccessGrant grant = new EmergencyAccessGrant();
grant.setId(UUID.randomUUID());
grant.setUserId(request.getUserId());
grant.setPatientId(request.getPatientId());
grant.setReason(request.getReason());
grant.setEmergencyType(request.getEmergencyType());
grant.setGrantedAt(Instant.now());
grant.setExpiresAt(Instant.now().plus(EMERGENCY_ACCESS_DURATION));
grant.setActive(true);
entityManager.persist(grant);
// 3. Audit log - CRITICAL priority
auditService.logEmergencyAccess(
request.getUserId(),
request.getPatientId(),
request.getReason(),
request.getEmergencyType(),
grant.getId()
);
// 4. Notify Privacy Officer và Security Team
notificationService.notifyEmergencyAccess(grant);
LOG.warnf("EMERGENCY ACCESS GRANTED: User=%s, Patient=%s, Reason=%s, Grant=%s",
request.getUserId(), request.getPatientId(),
request.getReason(), grant.getId());
return grant;
}
/**
* Kiểm tra user có emergency access đang active không.
*/
public boolean hasActiveEmergencyAccess(String userId, UUID patientId) {
Long count = entityManager.createQuery(
"SELECT COUNT(g) FROM EmergencyAccessGrant g " +
"WHERE g.userId = :userId AND g.patientId = :patientId " +
"AND g.active = true AND g.expiresAt > :now",
Long.class)
.setParameter("userId", userId)
.setParameter("patientId", patientId)
.setParameter("now", Instant.now())
.getSingleResult();
return count > 0;
}
/**
* Revoke emergency access (sau khi tình huống khẩn cấp kết thúc).
*/
@Transactional
public void revokeEmergencyAccess(UUID grantId, String revokedBy, String reason) {
EmergencyAccessGrant grant = entityManager.find(EmergencyAccessGrant.class, grantId);
if (grant != null && grant.isActive()) {
grant.setActive(false);
grant.setRevokedAt(Instant.now());
grant.setRevokedBy(revokedBy);
grant.setRevocationReason(reason);
auditService.logEmergencyAccessRevoked(grantId, revokedBy, reason);
}
}
private void validateEmergencyRequest(EmergencyAccessRequest request) {
if (request.getReason() == null || request.getReason().length() < 20) {
throw new IllegalArgumentException(
"Emergency access reason must be detailed (min 20 characters)");
}
if (request.getEmergencyType() == null) {
throw new IllegalArgumentException("Emergency type is required");
}
}
}
Entity cho Emergency Access Grant:
@Entity
@Table(name = "emergency_access_grants", schema = "compliance")
public class EmergencyAccessGrant {
@Id
private UUID id;
@Column(name = "user_id", nullable = false)
private String userId;
@Column(name = "patient_id", nullable = false)
private UUID patientId;
@Column(name = "reason", nullable = false, columnDefinition = "TEXT")
private String reason;
@Column(name = "emergency_type", nullable = false)
@Enumerated(EnumType.STRING)
private EmergencyType emergencyType;
@Column(name = "granted_at", nullable = false)
private Instant grantedAt;
@Column(name = "expires_at", nullable = false)
private Instant expiresAt;
@Column(name = "active", nullable = false)
private boolean active;
@Column(name = "revoked_at")
private Instant revokedAt;
@Column(name = "revoked_by")
private String revokedBy;
@Column(name = "revocation_reason")
private String revocationReason;
// Getters, setters omitted
public UUID getId() { return id; }
public void setId(UUID id) { this.id = id; }
public String getUserId() { return userId; }
public void setUserId(String userId) { this.userId = userId; }
public UUID getPatientId() { return patientId; }
public void setPatientId(UUID patientId) { this.patientId = patientId; }
public String getReason() { return reason; }
public void setReason(String reason) { this.reason = reason; }
public EmergencyType getEmergencyType() { return emergencyType; }
public void setEmergencyType(EmergencyType emergencyType) { this.emergencyType = emergencyType; }
public Instant getGrantedAt() { return grantedAt; }
public void setGrantedAt(Instant grantedAt) { this.grantedAt = grantedAt; }
public Instant getExpiresAt() { return expiresAt; }
public void setExpiresAt(Instant expiresAt) { this.expiresAt = expiresAt; }
public boolean isActive() { return active; }
public void setActive(boolean active) { this.active = active; }
public void setRevokedAt(Instant revokedAt) { this.revokedAt = revokedAt; }
public void setRevokedBy(String revokedBy) { this.revokedBy = revokedBy; }
public void setRevocationReason(String reason) { this.revocationReason = reason; }
}
enum EmergencyType {
LIFE_THREATENING, // Tình huống đe dọa tính mạng
NATURAL_DISASTER, // Thiên tai
SYSTEM_FAILURE, // Sự cố hệ thống
PUBLIC_HEALTH_EMERGENCY // Dịch bệnh
}
2.3. Automatic Logoff — §164.312(a)(2)(iii) [Addressable]
"Implement electronic procedures that terminate an electronic session after a predetermined time of inactivity."
Keycloak Session Configuration:
{
"realm": "healthcare",
"ssoSessionIdleTimeout": 900,
"ssoSessionMaxLifespan": 28800,
"accessTokenLifespan": 300,
"accessTokenLifespanForImplicitFlow": 300,
"offlineSessionIdleTimeout": 2592000,
"offlineSessionMaxLifespan": 5184000,
"clientSessionIdleTimeout": 900,
"clientSessionMaxLifespan": 28800,
"actionTokenGeneratedByUserLifespan": 300
}
| Setting | Giá trị | Ý nghĩa |
|---|---|---|
ssoSessionIdleTimeout | 900s (15 phút) | Session tự động hết hạn sau 15 phút không hoạt động |
ssoSessionMaxLifespan | 28800s (8 giờ) | Session tối đa 8 giờ (1 ca làm việc) |
accessTokenLifespan | 300s (5 phút) | Access token ngắn để giảm window of exposure |
actionTokenGeneratedByUserLifespan | 300s | Token cho reset password, verify email |
Quarkus OIDC Token Refresh:
# application.properties - Session management
quarkus.oidc.token.refresh-expired=true
quarkus.oidc.token.refresh-token-time-skew=10S
quarkus.oidc.token.lifespan-grace=5
quarkus.oidc.logout.path=/api/v1/logout
quarkus.oidc.logout.post-logout-path=/
2.4. Encryption and Decryption — §164.312(a)(2)(iv) [Addressable]
"Implement a mechanism to encrypt and decrypt ePHI."
Đã được triển khai chi tiết trong Bài 15 (End-to-End Encryption). Tóm tắt implementation:
| Component | Encryption Method | Key Management |
|---|---|---|
| Database columns (PHI) | AES-256-GCM via Vault Transit | HashiCorp Vault KEK |
| Inter-service communication | JWE (RSA-OAEP-256 + A256GCM) | Vault KV Engine |
| Kafka messages | Envelope encryption (DEK + KEK) | Vault Transit |
| Database at-rest | PostgreSQL TDE hoặc disk encryption | OS/Cloud KMS |
| Backups | AES-256-CBC via pgBackRest | Separate backup key |
| Transport | TLS 1.3 | Certificate Authority |
3. Audit Controls — §164.312(b)
3.1. Standard [Required]
"Implement hardware, software, and/or procedural mechanisms that record and examine activity in information systems that contain or use ePHI."
package vn.hospital.compliance.audit;
import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;
import jakarta.persistence.EntityManager;
import jakarta.transaction.Transactional;
import org.jboss.logging.Logger;
import java.time.Instant;
import java.util.Map;
import java.util.UUID;
/**
* HIPAA §164.312(b) - Audit Controls
* Record and examine all ePHI access activity.
*/
@ApplicationScoped
public class HipaaAuditService {
private static final Logger LOG = Logger.getLogger(HipaaAuditService.class);
@Inject
EntityManager entityManager;
/**
* Log mọi access event vào audit trail.
* HIPAA yêu cầu: WHO, WHAT, WHEN, WHERE, WHY.
*/
@Transactional
public void logAccess(AuditEvent event) {
AuditLogEntry entry = new AuditLogEntry();
entry.setId(UUID.randomUUID());
entry.setTimestamp(Instant.now());
// WHO - Unique User Identification
entry.setUserId(event.getUserId());
entry.setUsername(event.getUsername());
entry.setUserRole(event.getUserRole());
entry.setDepartment(event.getDepartment());
// WHAT - Action performed
entry.setAction(event.getAction());
entry.setResourceType(event.getResourceType());
entry.setResourceId(event.getResourceId());
// WHEN - Timestamp (UTC)
entry.setTimestamp(Instant.now());
// WHERE - Source information
entry.setSourceIp(event.getSourceIp());
entry.setUserAgent(event.getUserAgent());
entry.setServiceName(event.getServiceName());
// WHY - Reason/context
entry.setReason(event.getReason());
entry.setEmergencyAccess(event.isEmergencyAccess());
// Result
entry.setOutcome(event.getOutcome());
entry.setErrorMessage(event.getErrorMessage());
entityManager.persist(entry);
// Structured log cho ELK
LOG.infof("AUDIT: action=%s user=%s resource=%s/%s outcome=%s",
event.getAction(), event.getUsername(),
event.getResourceType(), event.getResourceId(),
event.getOutcome());
}
}
Audit Log Entity:
@Entity
@Table(name = "audit_logs", schema = "compliance",
indexes = {
@Index(name = "idx_audit_timestamp", columnList = "timestamp"),
@Index(name = "idx_audit_user", columnList = "user_id"),
@Index(name = "idx_audit_resource", columnList = "resource_type, resource_id"),
@Index(name = "idx_audit_action", columnList = "action")
})
public class AuditLogEntry {
@Id
private UUID id;
@Column(nullable = false)
private Instant timestamp;
// WHO
@Column(name = "user_id", nullable = false)
private String userId;
@Column(nullable = false)
private String username;
@Column(name = "user_role")
private String userRole;
@Column
private String department;
// WHAT
@Column(nullable = false)
@Enumerated(EnumType.STRING)
private AuditAction action;
@Column(name = "resource_type", nullable = false)
private String resourceType;
@Column(name = "resource_id")
private String resourceId;
// WHERE
@Column(name = "source_ip")
private String sourceIp;
@Column(name = "user_agent")
private String userAgent;
@Column(name = "service_name")
private String serviceName;
// WHY
@Column
private String reason;
@Column(name = "emergency_access")
private boolean emergencyAccess;
// RESULT
@Column(nullable = false)
@Enumerated(EnumType.STRING)
private AuditOutcome outcome;
@Column(name = "error_message")
private String errorMessage;
// Getters, setters omitted
public UUID getId() { return id; }
public void setId(UUID id) { this.id = id; }
public Instant getTimestamp() { return timestamp; }
public void setTimestamp(Instant timestamp) { this.timestamp = timestamp; }
public String getUserId() { return userId; }
public void setUserId(String userId) { this.userId = userId; }
public String getUsername() { return username; }
public void setUsername(String username) { this.username = username; }
public String getUserRole() { return userRole; }
public void setUserRole(String userRole) { this.userRole = userRole; }
public String getDepartment() { return department; }
public void setDepartment(String department) { this.department = department; }
public AuditAction getAction() { return action; }
public void setAction(AuditAction action) { this.action = action; }
public String getResourceType() { return resourceType; }
public void setResourceType(String resourceType) { this.resourceType = resourceType; }
public String getResourceId() { return resourceId; }
public void setResourceId(String resourceId) { this.resourceId = resourceId; }
public String getSourceIp() { return sourceIp; }
public void setSourceIp(String sourceIp) { this.sourceIp = sourceIp; }
public String getUserAgent() { return userAgent; }
public void setUserAgent(String userAgent) { this.userAgent = userAgent; }
public String getServiceName() { return serviceName; }
public void setServiceName(String serviceName) { this.serviceName = serviceName; }
public String getReason() { return reason; }
public void setReason(String reason) { this.reason = reason; }
public boolean isEmergencyAccess() { return emergencyAccess; }
public void setEmergencyAccess(boolean emergencyAccess) { this.emergencyAccess = emergencyAccess; }
public AuditOutcome getOutcome() { return outcome; }
public void setOutcome(AuditOutcome outcome) { this.outcome = outcome; }
public String getErrorMessage() { return errorMessage; }
public void setErrorMessage(String errorMessage) { this.errorMessage = errorMessage; }
}
enum AuditAction {
CREATE, READ, UPDATE, DELETE,
LOGIN, LOGOUT, LOGIN_FAILED,
EXPORT, PRINT, DOWNLOAD,
EMERGENCY_ACCESS, PERMISSION_CHANGE,
ENCRYPTION, DECRYPTION,
BACKUP, RESTORE
}
enum AuditOutcome {
SUCCESS, FAILURE, DENIED, ERROR
}
JAX-RS Filter cho Automatic Audit:
package vn.hospital.compliance.audit;
import jakarta.annotation.Priority;
import jakarta.inject.Inject;
import jakarta.ws.rs.container.ContainerRequestContext;
import jakarta.ws.rs.container.ContainerRequestFilter;
import jakarta.ws.rs.container.ContainerResponseContext;
import jakarta.ws.rs.container.ContainerResponseFilter;
import jakarta.ws.rs.ext.Provider;
import org.eclipse.microprofile.jwt.JsonWebToken;
import java.io.IOException;
/**
* Automatic audit logging cho mọi API request liên quan đến PHI.
*/
@Provider
@Priority(100)
public class AuditRequestFilter implements ContainerRequestFilter, ContainerResponseFilter {
@Inject
HipaaAuditService auditService;
@Inject
JsonWebToken jwt;
@Override
public void filter(ContainerRequestContext request) throws IOException {
// Store start time cho response timing
request.setProperty("audit.startTime", System.currentTimeMillis());
}
@Override
public void filter(ContainerRequestContext request,
ContainerResponseContext response) throws IOException {
String path = request.getUriInfo().getPath();
// Chỉ audit PHI-related endpoints
if (!isPhiEndpoint(path)) return;
AuditAction action = mapHttpMethodToAction(request.getMethod());
AuditOutcome outcome = response.getStatus() < 400
? AuditOutcome.SUCCESS
: (response.getStatus() == 403 ? AuditOutcome.DENIED : AuditOutcome.FAILURE);
AuditEvent event = new AuditEvent();
event.setUserId(jwt.getSubject());
event.setUsername(jwt.getClaim("preferred_username"));
event.setUserRole(String.join(",", jwt.getGroups()));
event.setDepartment(jwt.getClaim("department"));
event.setAction(action);
event.setResourceType(extractResourceType(path));
event.setResourceId(extractResourceId(path));
event.setSourceIp(request.getHeaderString("X-Forwarded-For"));
event.setUserAgent(request.getHeaderString("User-Agent"));
event.setServiceName("patient-service");
event.setOutcome(outcome);
auditService.logAccess(event);
}
private boolean isPhiEndpoint(String path) {
return path.startsWith("api/v1/patients")
|| path.startsWith("api/v1/medical-records")
|| path.startsWith("api/v1/lab-results")
|| path.startsWith("api/v1/prescriptions");
}
private AuditAction mapHttpMethodToAction(String method) {
return switch (method) {
case "GET" -> AuditAction.READ;
case "POST" -> AuditAction.CREATE;
case "PUT", "PATCH" -> AuditAction.UPDATE;
case "DELETE" -> AuditAction.DELETE;
default -> AuditAction.READ;
};
}
private String extractResourceType(String path) {
String[] parts = path.split("/");
return parts.length >= 3 ? parts[2] : "unknown";
}
private String extractResourceId(String path) {
String[] parts = path.split("/");
return parts.length >= 4 ? parts[3] : null;
}
}
3.2. SQL Schema cho Audit Logs
-- Schema cho HIPAA Audit Trail
CREATE SCHEMA IF NOT EXISTS compliance;
CREATE TABLE compliance.audit_logs (
id UUID PRIMARY KEY,
timestamp TIMESTAMPTZ NOT NULL DEFAULT NOW(),
-- WHO
user_id VARCHAR(255) NOT NULL,
username VARCHAR(255) NOT NULL,
user_role VARCHAR(500),
department VARCHAR(100),
-- WHAT
action VARCHAR(50) NOT NULL,
resource_type VARCHAR(100) NOT NULL,
resource_id VARCHAR(255),
-- WHERE
source_ip VARCHAR(45),
user_agent TEXT,
service_name VARCHAR(100),
-- WHY
reason TEXT,
emergency_access BOOLEAN DEFAULT FALSE,
-- RESULT
outcome VARCHAR(20) NOT NULL,
error_message TEXT
) PARTITION BY RANGE (timestamp);
-- Partition theo tháng cho performance
CREATE TABLE compliance.audit_logs_2024_01
PARTITION OF compliance.audit_logs
FOR VALUES FROM ('2024-01-01') TO ('2024-02-01');
CREATE TABLE compliance.audit_logs_2024_02
PARTITION OF compliance.audit_logs
FOR VALUES FROM ('2024-02-01') TO ('2024-03-01');
-- Index cho queries thường dùng
CREATE INDEX idx_audit_timestamp ON compliance.audit_logs (timestamp);
CREATE INDEX idx_audit_user_id ON compliance.audit_logs (user_id);
CREATE INDEX idx_audit_resource ON compliance.audit_logs (resource_type, resource_id);
CREATE INDEX idx_audit_action ON compliance.audit_logs (action);
CREATE INDEX idx_audit_outcome ON compliance.audit_logs (outcome);
-- HIPAA yêu cầu giữ audit logs tối thiểu 6 năm
-- KHÔNG DELETE audit logs trong 6 năm
-- Sử dụng tablespace riêng cho audit data
-- Prevent deletion of audit records
REVOKE DELETE ON compliance.audit_logs FROM PUBLIC;
-- Chỉ superuser mới được DELETE (và phải theo retention policy)
4. Integrity Controls — §164.312(c)(1)
4.1. Standard [Required]
"Implement policies and procedures to protect ePHI from improper alteration or destruction."
4.2. Mechanism to Authenticate ePHI — §164.312(c)(2) [Addressable]
"Implement electronic mechanisms to corroborate that ePHI has not been altered or destroyed in an unauthorized manner."
package vn.hospital.compliance.integrity;
import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;
import org.jboss.logging.Logger;
import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;
import java.nio.charset.StandardCharsets;
import java.security.MessageDigest;
import java.util.Base64;
/**
* HIPAA §164.312(c)(2) - ePHI Integrity Verification
* Đảm bảo dữ liệu không bị sửa đổi trái phép.
*/
@ApplicationScoped
public class EphiIntegrityService {
private static final Logger LOG = Logger.getLogger(EphiIntegrityService.class);
private static final String HMAC_ALGORITHM = "HmacSHA256";
@Inject
@io.quarkus.vault.runtime.config.VaultConfigSource
String integrityKey; // Lấy từ Vault
/**
* Tính HMAC-SHA256 cho record integrity verification.
* HMAC bao gồm tất cả PHI fields + metadata.
*/
public String computeRecordHmac(PatientRecord record) {
try {
String dataToSign = String.join("|",
record.getId().toString(),
record.getMrn(),
record.getFullName(),
record.getSsn() != null ? record.getSsn() : "",
record.getDateOfBirth() != null ? record.getDateOfBirth() : "",
record.getDiagnosisCodes() != null ? record.getDiagnosisCodes() : "",
record.getLastModifiedBy(),
record.getLastModifiedAt().toString()
);
Mac mac = Mac.getInstance(HMAC_ALGORITHM);
SecretKeySpec keySpec = new SecretKeySpec(
integrityKey.getBytes(StandardCharsets.UTF_8), HMAC_ALGORITHM);
mac.init(keySpec);
byte[] hmacBytes = mac.doFinal(dataToSign.getBytes(StandardCharsets.UTF_8));
return Base64.getEncoder().encodeToString(hmacBytes);
} catch (Exception e) {
throw new RuntimeException("HMAC computation failed", e);
}
}
/**
* Verify record integrity - so sánh stored HMAC với computed HMAC.
*/
public boolean verifyRecordIntegrity(PatientRecord record) {
String storedHmac = record.getIntegrityHash();
if (storedHmac == null) {
LOG.warnf("No integrity hash for record: %s", record.getId());
return false;
}
String computedHmac = computeRecordHmac(record);
return MessageDigest.isEqual(
storedHmac.getBytes(StandardCharsets.UTF_8),
computedHmac.getBytes(StandardCharsets.UTF_8)
);
}
}
PostgreSQL Trigger cho Integrity Tracking:
-- Trigger function để track mọi thay đổi trên PHI records
CREATE OR REPLACE FUNCTION compliance.track_phi_changes()
RETURNS TRIGGER AS $$
DECLARE
changes JSONB;
BEGIN
-- Build changes JSON
IF TG_OP = 'UPDATE' THEN
changes = jsonb_build_object(
'operation', 'UPDATE',
'table_name', TG_TABLE_SCHEMA || '.' || TG_TABLE_NAME,
'record_id', NEW.id,
'old_values', to_jsonb(OLD),
'new_values', to_jsonb(NEW),
'changed_by', current_setting('app.current_user_id', true),
'changed_at', NOW()
);
ELSIF TG_OP = 'DELETE' THEN
changes = jsonb_build_object(
'operation', 'DELETE',
'table_name', TG_TABLE_SCHEMA || '.' || TG_TABLE_NAME,
'record_id', OLD.id,
'deleted_values', to_jsonb(OLD),
'changed_by', current_setting('app.current_user_id', true),
'changed_at', NOW()
);
ELSIF TG_OP = 'INSERT' THEN
changes = jsonb_build_object(
'operation', 'INSERT',
'table_name', TG_TABLE_SCHEMA || '.' || TG_TABLE_NAME,
'record_id', NEW.id,
'new_values', to_jsonb(NEW),
'changed_by', current_setting('app.current_user_id', true),
'changed_at', NOW()
);
END IF;
-- Insert vào change log (immutable)
INSERT INTO compliance.data_change_log (id, change_data, created_at)
VALUES (gen_random_uuid(), changes, NOW());
RETURN COALESCE(NEW, OLD);
END;
$$ LANGUAGE plpgsql;
-- Apply trigger cho patients table
CREATE TRIGGER trg_patients_phi_changes
AFTER INSERT OR UPDATE OR DELETE ON healthcare.patients
FOR EACH ROW EXECUTE FUNCTION compliance.track_phi_changes();
-- Change log table (append-only, no UPDATE/DELETE)
CREATE TABLE compliance.data_change_log (
id UUID PRIMARY KEY,
change_data JSONB NOT NULL,
created_at TIMESTAMPTZ NOT NULL DEFAULT NOW()
) PARTITION BY RANGE (created_at);
REVOKE UPDATE, DELETE ON compliance.data_change_log FROM PUBLIC;
5. Person or Entity Authentication — §164.312(d)
5.1. Standard [Required]
"Implement procedures to verify that a person or entity seeking access to ePHI is the one claimed."
Multi-Factor Authentication với Keycloak:
{
"realm": "healthcare",
"browserFlow": "healthcare-browser-flow",
"authenticationFlows": [
{
"alias": "healthcare-browser-flow",
"description": "Healthcare MFA browser flow",
"providerId": "basic-flow",
"topLevel": true,
"builtIn": false,
"authenticationExecutions": [
{
"authenticatorFlow": false,
"authenticator": "auth-cookie",
"requirement": "ALTERNATIVE",
"priority": 10
},
{
"authenticatorFlow": true,
"flowAlias": "healthcare-forms",
"requirement": "ALTERNATIVE",
"priority": 20
}
]
},
{
"alias": "healthcare-forms",
"description": "Username/password + TOTP",
"providerId": "basic-flow",
"topLevel": false,
"authenticationExecutions": [
{
"authenticator": "auth-username-password-form",
"requirement": "REQUIRED",
"priority": 10
},
{
"authenticator": "auth-otp-form",
"requirement": "REQUIRED",
"priority": 20
}
]
}
],
"requiredActions": [
{
"alias": "CONFIGURE_TOTP",
"name": "Configure OTP",
"providerId": "CONFIGURE_TOTP",
"enabled": true,
"defaultAction": true,
"priority": 10
}
],
"otpPolicyType": "totp",
"otpPolicyAlgorithm": "HmacSHA256",
"otpPolicyDigits": 6,
"otpPolicyPeriod": 30,
"otpPolicyInitialCounter": 0,
"bruteForceProtected": true,
"maxFailureWaitSeconds": 900,
"failureFactor": 5,
"waitIncrementSeconds": 60,
"maxDeltaTimeSeconds": 43200
}
| Cấu hình | Giá trị | Mục đích HIPAA |
|---|---|---|
| MFA Required | TOTP (6 digits, 30s) | Xác thực danh tính mạnh |
| Brute Force Protection | 5 lần thất bại → khóa 15 phút | Chống brute force |
| Password Policy | Min 12 chars, uppercase, number, special | Strong passwords |
| Session Timeout | 15 phút idle, 8 giờ max | Automatic logoff |
| Account Lockout | 5 failed attempts | Prevent unauthorized access |
6. Transmission Security — §164.312(e)(1)
6.1. Standard [Required]
"Implement technical security measures to guard against unauthorized access to ePHI that is being transmitted over an electronic communications network."
6.2. Integrity Controls — §164.312(e)(2)(i) [Addressable]
"Implement security measures to ensure that electronically transmitted ePHI is not improperly modified without detection until disposed of."
6.3. Encryption — §164.312(e)(2)(ii) [Addressable]
"Implement a mechanism to encrypt ePHI whenever deemed appropriate."
# application.properties - Transmission Security
# === TLS 1.3 Only ===
quarkus.http.ssl.protocols=TLSv1.3
quarkus.http.insecure-requests=disabled
quarkus.http.ssl-port=8443
# === Strong Cipher Suites ===
quarkus.http.ssl.cipher-suites=\
TLS_AES_256_GCM_SHA384,\
TLS_AES_128_GCM_SHA256,\
TLS_CHACHA20_POLY1305_SHA256
# === HSTS Header ===
quarkus.http.header."Strict-Transport-Security".value=max-age=31536000; includeSubDomains; preload
quarkus.http.header."Strict-Transport-Security".path=/
# === Certificate Configuration ===
quarkus.http.ssl.certificate.key-store-file=${TLS_KEYSTORE_PATH}
quarkus.http.ssl.certificate.key-store-password=${TLS_KEYSTORE_PASSWORD}
quarkus.http.ssl.certificate.key-store-file-type=PKCS12
# === REST Client TLS ===
quarkus.rest-client."vn.hospital.client.LabServiceClient".trust-store=${TLS_TRUSTSTORE_PATH}
quarkus.rest-client."vn.hospital.client.LabServiceClient".trust-store-password=${TLS_TRUSTSTORE_PASSWORD}
7. Compliance Matrix tổng hợp
7.1. HIPAA Technical Safeguards Compliance Matrix
| § | Safeguard | Spec | R/A | Implementation | Status |
|---|---|---|---|---|---|
| 312(a)(1) | Access Control | Standard | R | Keycloak OIDC + Quarkus RBAC | |
| 312(a)(2)(i) | Unique User ID | Spec | R | Keycloak UUID (sub claim) | |
| 312(a)(2)(ii) | Emergency Access | Spec | R | Break-the-Glass service | |
| 312(a)(2)(iii) | Automatic Logoff | Spec | A | Keycloak session timeout 15min | |
| 312(a)(2)(iv) | Encryption/Decryption | Spec | A | Vault Transit AES-256-GCM | |
| 312(b) | Audit Controls | Standard | R | AuditLogEntry + JAX-RS filter | |
| 312(c)(1) | Integrity | Standard | R | HMAC-SHA256 + change tracking | |
| 312(c)(2) | Auth ePHI | Spec | A | HMAC verification + triggers | |
| 312(d) | Person Authentication | Standard | R | Keycloak MFA (TOTP) | |
| 312(e)(1) | Transmission Security | Standard | R | TLS 1.3 + mTLS + HSTS | |
| 312(e)(2)(i) | Integrity Controls | Spec | A | TLS integrity + JWE | |
| 312(e)(2)(ii) | Encryption | Spec | A | TLS 1.3, AES-256-GCM ciphers |
7.2. Automated Compliance Check Script
#!/bin/bash
# hipaa-compliance-check.sh
# Script tự động kiểm tra HIPAA Technical Safeguards compliance
set -euo pipefail
REPORT_FILE="hipaa-compliance-report-$(date +%Y%m%d).txt"
PASS=0
FAIL=0
WARN=0
log_result() {
local status=$1
local section=$2
local check=$3
local detail=$4
echo "[$status] §164.$section - $check: $detail" | tee -a "$REPORT_FILE"
case $status in
PASS) ((PASS++)) ;;
FAIL) ((FAIL++)) ;;
WARN) ((WARN++)) ;;
esac
}
echo "=== HIPAA Technical Safeguards Compliance Check ===" | tee "$REPORT_FILE"
echo "Date: $(date -u +"%Y-%m-%dT%H:%M:%SZ")" | tee -a "$REPORT_FILE"
echo "=================================================" | tee -a "$REPORT_FILE"
# --- §164.312(a)(2)(i) Unique User Identification ---
echo "" | tee -a "$REPORT_FILE"
echo "--- Access Control ---" | tee -a "$REPORT_FILE"
# Check Keycloak user configuration
KC_USERS=$(curl -s -H "Authorization: Bearer $KC_ADMIN_TOKEN" \
"$KEYCLOAK_URL/admin/realms/healthcare/users?max=1" | jq length 2>/dev/null || echo "ERROR")
if [ "$KC_USERS" != "ERROR" ]; then
log_result "PASS" "312(a)(2)(i)" "Unique User ID" "Keycloak users configured"
else
log_result "FAIL" "312(a)(2)(i)" "Unique User ID" "Cannot verify Keycloak users"
fi
# --- §164.312(a)(2)(iii) Automatic Logoff ---
KC_SESSION_TIMEOUT=$(curl -s -H "Authorization: Bearer $KC_ADMIN_TOKEN" \
"$KEYCLOAK_URL/admin/realms/healthcare" | jq '.ssoSessionIdleTimeout' 2>/dev/null || echo "0")
if [ "$KC_SESSION_TIMEOUT" -le 900 ] && [ "$KC_SESSION_TIMEOUT" -gt 0 ]; then
log_result "PASS" "312(a)(2)(iii)" "Automatic Logoff" \
"Session idle timeout: ${KC_SESSION_TIMEOUT}s (≤15min)"
else
log_result "FAIL" "312(a)(2)(iii)" "Automatic Logoff" \
"Session idle timeout: ${KC_SESSION_TIMEOUT}s (should be ≤900s)"
fi
# --- §164.312(a)(2)(iv) Encryption ---
# Check TLS version
TLS_VERSION=$(echo | openssl s_client -connect "$APP_HOST:8443" -tls1_3 2>/dev/null \
| grep "Protocol" | awk '{print $NF}' || echo "UNKNOWN")
if [ "$TLS_VERSION" = "TLSv1.3" ]; then
log_result "PASS" "312(a)(2)(iv)" "Encryption - TLS" "TLS 1.3 enabled"
else
log_result "FAIL" "312(a)(2)(iv)" "Encryption - TLS" \
"TLS version: $TLS_VERSION (should be TLSv1.3)"
fi
# Check Vault Transit
VAULT_KEY=$(vault read -format=json transit/keys/phi-data 2>/dev/null | \
jq -r '.data.type' || echo "NONE")
if [ "$VAULT_KEY" = "aes256-gcm96" ]; then
log_result "PASS" "312(a)(2)(iv)" "Encryption - Vault" "Transit key: aes256-gcm96"
else
log_result "FAIL" "312(a)(2)(iv)" "Encryption - Vault" \
"Vault Transit key not found or wrong type"
fi
# --- §164.312(b) Audit Controls ---
AUDIT_TABLE=$(psql "$DB_URL" -tAc \
"SELECT COUNT(*) FROM information_schema.tables \
WHERE table_schema='compliance' AND table_name='audit_logs'" 2>/dev/null || echo "0")
if [ "$AUDIT_TABLE" = "1" ]; then
log_result "PASS" "312(b)" "Audit Controls" "Audit log table exists"
else
log_result "FAIL" "312(b)" "Audit Controls" "Audit log table NOT found"
fi
# Check audit log has recent entries
RECENT_AUDITS=$(psql "$DB_URL" -tAc \
"SELECT COUNT(*) FROM compliance.audit_logs \
WHERE timestamp > NOW() - INTERVAL '24 hours'" 2>/dev/null || echo "0")
if [ "$RECENT_AUDITS" -gt 0 ]; then
log_result "PASS" "312(b)" "Audit Controls - Active" \
"$RECENT_AUDITS audit entries in last 24h"
else
log_result "WARN" "312(b)" "Audit Controls - Active" \
"No audit entries in last 24h"
fi
# --- §164.312(c) Integrity Controls ---
CHANGE_LOG=$(psql "$DB_URL" -tAc \
"SELECT COUNT(*) FROM information_schema.tables \
WHERE table_schema='compliance' AND table_name='data_change_log'" 2>/dev/null || echo "0")
if [ "$CHANGE_LOG" = "1" ]; then
log_result "PASS" "312(c)" "Integrity Controls" "Change log table exists"
else
log_result "FAIL" "312(c)" "Integrity Controls" "Change log table NOT found"
fi
# --- §164.312(d) Person Authentication ---
KC_OTP=$(curl -s -H "Authorization: Bearer $KC_ADMIN_TOKEN" \
"$KEYCLOAK_URL/admin/realms/healthcare" | jq -r '.otpPolicyType' 2>/dev/null || echo "NONE")
if [ "$KC_OTP" = "totp" ]; then
log_result "PASS" "312(d)" "Person Authentication" "MFA enabled (TOTP)"
else
log_result "FAIL" "312(d)" "Person Authentication" "MFA NOT configured"
fi
# --- §164.312(e) Transmission Security ---
# Check if insecure HTTP is disabled
HTTP_REDIRECT=$(curl -s -o /dev/null -w "%{http_code}" \
"http://$APP_HOST:8080/health" 2>/dev/null || echo "000")
if [ "$HTTP_REDIRECT" = "000" ] || [ "$HTTP_REDIRECT" = "301" ]; then
log_result "PASS" "312(e)" "Transmission Security" \
"HTTP disabled/redirected (code: $HTTP_REDIRECT)"
else
log_result "FAIL" "312(e)" "Transmission Security" \
"HTTP still accessible (code: $HTTP_REDIRECT)"
fi
# --- Summary ---
echo "" | tee -a "$REPORT_FILE"
echo "=== COMPLIANCE SUMMARY ===" | tee -a "$REPORT_FILE"
echo "PASS: $PASS" | tee -a "$REPORT_FILE"
echo "FAIL: $FAIL" | tee -a "$REPORT_FILE"
echo "WARN: $WARN" | tee -a "$REPORT_FILE"
TOTAL=$((PASS + FAIL + WARN))
if [ $TOTAL -gt 0 ]; then
SCORE=$((PASS * 100 / TOTAL))
echo "Score: ${SCORE}%" | tee -a "$REPORT_FILE"
fi
if [ $FAIL -gt 0 ]; then
echo "STATUS: NON-COMPLIANT" | tee -a "$REPORT_FILE"
exit 1
else
echo "STATUS: COMPLIANT" | tee -a "$REPORT_FILE"
fi
8. BAA (Business Associate Agreement) — Technical Requirements
8.1. BAA Technical Obligations
Khi sử dụng third-party services (cloud providers, SaaS), BAA yêu cầu các đảm bảo kỹ thuật:
Cloud Provider (AWS/GCP/Azure):
- Encryption at rest: AES-256
- Encryption in transit: TLS 1.2+
- Access logging: CloudTrail/Cloud Audit Logs
- Data residency: Specify region
- Incident notification: ≤ 60 days
Database Service (RDS/Cloud SQL):
- Encrypted storage volumes + backups
- Audit logging enabled
- Network isolation (VPC)
- IAM authentication
Monitoring Service (Datadog/New Relic):
- PHI masking before sending
- Data processing agreement
- EU/US data residency
- Log retention controls
Email Service (SendGrid/SES):
- TLS enforced
- No PHI in email content
- Breach notification capability
8.2. BAA Compliance Verification
package vn.hospital.compliance.baa;
import jakarta.enterprise.context.ApplicationScoped;
import java.time.LocalDate;
import java.util.List;
/**
* Track Business Associate Agreements và technical compliance.
*/
@ApplicationScoped
public class BaaComplianceService {
/**
* Danh sách Business Associates cần BAA.
*/
public List<BusinessAssociate> getBusinessAssociates() {
return List.of(
new BusinessAssociate(
"AWS", "Cloud Infrastructure",
"BAA-AWS-2024-001", LocalDate.of(2024, 1, 15),
List.of("AES-256 at rest", "TLS 1.2+ in transit",
"CloudTrail logging", "VPC isolation")
),
new BusinessAssociate(
"Elastic Cloud", "Log Management (ELK)",
"BAA-ELASTIC-2024-002", LocalDate.of(2024, 2, 1),
List.of("Encrypted clusters", "RBAC", "Audit logging",
"Data residency controls")
),
new BusinessAssociate(
"HashiCorp Cloud", "Vault (Key Management)",
"BAA-HASHI-2024-003", LocalDate.of(2024, 3, 1),
List.of("FIPS 140-2 HSMs", "SOC 2 Type II",
"Encryption in transit", "Access logging")
)
);
}
}
record BusinessAssociate(
String name,
String serviceDescription,
String baaId,
LocalDate effectiveDate,
List<String> technicalSafeguards
) {}
9. Nghị định 13/2023/NĐ-CP — Bảo vệ Dữ liệu Cá nhân Việt Nam
9.1. Tổng quan Nghị định 13
Nghị định 13/2023/NĐ-CP về bảo vệ dữ liệu cá nhân (có hiệu lực từ 01/07/2023) là quy định đầu tiên của Việt Nam về data protection, tương tự GDPR của EU. Đối với hệ thống y tế, dữ liệu sức khỏe thuộc dữ liệu cá nhân nhạy cảm.
9.2. Mapping Nghị định 13 với HIPAA Controls
| Nghị định 13 | Điều | HIPAA Tương đương | Implementation |
|---|---|---|---|
| Đồng ý xử lý dữ liệu | Điều 11 | Authorization §164.508 | Consent management service |
| Quyền truy cập dữ liệu | Điều 9 | Right of Access §164.524 | Patient portal API |
| Quyền xóa dữ liệu | Điều 16 | N/A (HIPAA giữ 6 năm) | Soft delete + anonymization |
| Thông báo vi phạm | Điều 23 | Breach Notification §164.408 | Incident response workflow |
| Đánh giá tác động | Điều 24 | Risk Analysis §164.308(a)(1) | DPIA template |
| Bảo mật dữ liệu | Điều 26 | Technical Safeguards §164.312 | Encryption + access control |
| Chuyển dữ liệu xuyên biên | Điều 25 | N/A | Data residency controls |
| DPO (Cán bộ bảo vệ) | Điều 28 | Privacy Officer | Role assignment |
9.3. Consent Management Service
package vn.hospital.compliance.consent;
import jakarta.enterprise.context.ApplicationScoped;
import jakarta.inject.Inject;
import jakarta.persistence.EntityManager;
import jakarta.transaction.Transactional;
import java.time.Instant;
import java.util.List;
import java.util.UUID;
/**
* Nghị định 13 Điều 11 - Đồng ý xử lý dữ liệu cá nhân.
* Bệnh nhân phải đồng ý trước khi xử lý dữ liệu sức khỏe.
*/
@ApplicationScoped
public class ConsentManagementService {
@Inject
EntityManager entityManager;
/**
* Ghi nhận consent của bệnh nhân.
*/
@Transactional
public ConsentRecord recordConsent(ConsentRequest request) {
ConsentRecord record = new ConsentRecord();
record.setId(UUID.randomUUID());
record.setPatientId(request.getPatientId());
record.setPurpose(request.getPurpose());
record.setScope(request.getScope());
record.setConsentGiven(request.isConsentGiven());
record.setConsentMethod(request.getConsentMethod());
record.setConsentedAt(Instant.now());
record.setExpiresAt(request.getExpiresAt());
record.setVersion(request.getConsentFormVersion());
entityManager.persist(record);
return record;
}
/**
* Kiểm tra bệnh nhân đã consent cho mục đích cụ thể chưa.
*/
public boolean hasValidConsent(UUID patientId, String purpose) {
Long count = entityManager.createQuery(
"SELECT COUNT(c) FROM ConsentRecord c " +
"WHERE c.patientId = :patientId AND c.purpose = :purpose " +
"AND c.consentGiven = true AND c.revokedAt IS NULL " +
"AND (c.expiresAt IS NULL OR c.expiresAt > :now)",
Long.class)
.setParameter("patientId", patientId)
.setParameter("purpose", purpose)
.setParameter("now", Instant.now())
.getSingleResult();
return count > 0;
}
/**
* Thu hồi consent (Điều 12 - Quyền rút lại đồng ý).
*/
@Transactional
public void revokeConsent(UUID consentId, String revokedBy, String reason) {
ConsentRecord record = entityManager.find(ConsentRecord.class, consentId);
if (record != null) {
record.setRevokedAt(Instant.now());
record.setRevokedBy(revokedBy);
record.setRevocationReason(reason);
}
}
/**
* Lấy tất cả consent records cho một bệnh nhân.
* Nghị định 13 Điều 9 - Quyền truy cập dữ liệu.
*/
public List<ConsentRecord> getPatientConsents(UUID patientId) {
return entityManager.createQuery(
"SELECT c FROM ConsentRecord c WHERE c.patientId = :patientId " +
"ORDER BY c.consentedAt DESC", ConsentRecord.class)
.setParameter("patientId", patientId)
.getResultList();
}
}
9.4. Data Residency Check
package vn.hospital.compliance.residency;
import jakarta.enterprise.context.ApplicationScoped;
import org.jboss.logging.Logger;
import java.util.Set;
/**
* Nghị định 13 Điều 25 - Chuyển dữ liệu cá nhân ra nước ngoài.
* Yêu cầu đánh giá tác động trước khi transfer.
*/
@ApplicationScoped
public class DataResidencyService {
private static final Logger LOG = Logger.getLogger(DataResidencyService.class);
// Danh sách regions được phép lưu trữ dữ liệu y tế VN
private static final Set<String> ALLOWED_REGIONS = Set.of(
"ap-southeast-1", // Singapore (gần VN, có BAA)
"ap-east-1" // Hong Kong
// VN region khi available
);
/**
* Kiểm tra region có được phép lưu trữ dữ liệu không.
*/
public boolean isAllowedRegion(String region) {
return ALLOWED_REGIONS.contains(region);
}
/**
* Validate trước khi cross-border transfer.
*/
public TransferAssessment assessCrossBorderTransfer(
String sourceRegion, String targetRegion, String dataType) {
boolean allowed = ALLOWED_REGIONS.contains(targetRegion);
return new TransferAssessment(
sourceRegion, targetRegion, dataType,
allowed,
allowed ? "Transfer allowed" :
"Transfer requires DPIA and regulatory approval per Nghị định 13 Điều 25"
);
}
}
record TransferAssessment(
String sourceRegion,
String targetRegion,
String dataType,
boolean allowed,
String assessment
) {}
Tổng kết
Trong bài học này, chúng ta đã mapping đầy đủ HIPAA Technical Safeguards §164.312 sang implementation cụ thể:
- Access Control §164.312(a): Keycloak unique user IDs, Break-the-Glass emergency access, automatic logoff (15-min idle timeout), field-level encryption với Vault Transit
- Audit Controls §164.312(b): Comprehensive audit trail (WHO/WHAT/WHEN/WHERE/WHY), JAX-RS filter tự động log PHI access, partitioned audit tables
- Integrity Controls §164.312(c): HMAC-SHA256 record integrity, PostgreSQL triggers cho change tracking, immutable change log
- Person Authentication §164.312(d): Keycloak MFA (TOTP), password policies, brute force protection, account lockout
- Transmission Security §164.312(e): TLS 1.3 only, strong cipher suites, HSTS, mTLS cho inter-service
- Compliance Automation: Script kiểm tra tự động, compliance matrix, scoring
- BAA Technical Requirements: Cloud provider obligations, PHI masking cho third-party services
- Nghị định 13/2023/NĐ-CP: Consent management, data residency controls, cross-border transfer assessment, mapping với HIPAA
Bài tập
-
Compliance Matrix: Tạo spreadsheet hoặc database table chứa compliance matrix đầy đủ cho dự án của bạn. Mapping tất cả 12 HIPAA Technical Safeguard specifications sang implementation cụ thể. Đánh giá status (Compliant/Non-compliant/In Progress) cho từng item. Tạo action plan cho các items Non-compliant.
-
Emergency Access: Implement Break-the-Glass service hoàn chỉnh. Tạo REST API: POST
/api/v1/emergency-access(request access), DELETE/api/v1/emergency-access/{id}(revoke). Integrate với Keycloak để cấp temporary role. Verify audit log ghi nhận đầy đủ thông tin. Test: truy cập PHI mà không có emergency access → 403. -
Automated Compliance Check: Customize script
hipaa-compliance-check.shcho môi trường của bạn. Thêm checks cho: database encryption at rest, backup encryption, password policy strength, MFA enrollment percentage. Integrate vào CI/CD pipeline (chạy mỗi deployment). Output report dạng JSON cho dashboard monitoring. -
Consent Management (Nghị định 13): Implement REST API cho consent management. Tạo consent form cho 3 mục đích: treatment, research, data sharing. Implement: record consent, check consent, revoke consent, list consents. Tạo một patient portal endpoint hiển thị consent history. Verify: không thể access PHI khi consent chưa được granted.
| ◀ Bài trước | Bài tiếp theo ▶ |
|---|---|
| Bài 16: mTLS, Service Mesh & Secure Inter-Service Communication | Bài 18: Centralized Audit Trail với OpenTelemetry & ELK Stack |
