Control plane và worker node components. kubeadm bootstrap cluster. ETCD, API Server, Scheduler, Controller Manager trong môi trường CKA exam.

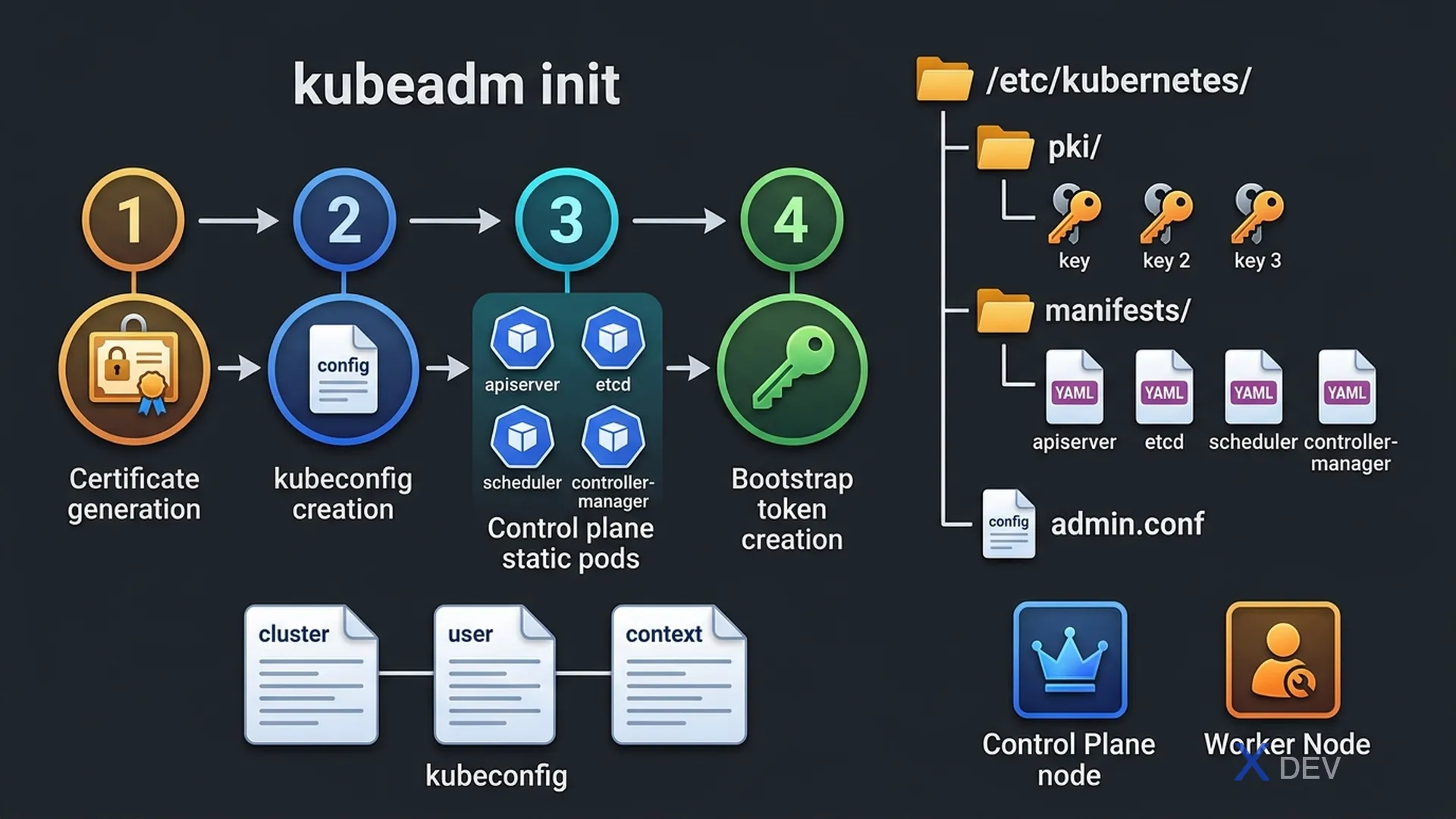

kubeadm Cluster Initialization Sequence và kubeconfig

1. Kubernetes Architecture Review (CKA Focus)

CKA exam yêu cầu bạn có thể troubleshoot cluster components, không chỉ biết lý thuyết.

Control Plane Node                 Worker Nodes
──────────────────                 ────────────
  kube-apiserver  ◄──────────────── kubelet
  etcd                               kube-proxy
  kube-scheduler                     container runtime
  controller-manager                 (containerd)
  cloud-controller-manager (opt)

All components communicate via kube-apiserver (only etcd talks directly to API server)

Component	Location	Config / Pod Path	Troubleshoot
kube-apiserver	Control plane	`/etc/kubernetes/manifests/kube-apiserver.yaml`	kubectl get pods -n kube-system
etcd	Control plane	`/etc/kubernetes/manifests/etcd.yaml`	etcdctl member list
kube-scheduler	Control plane	`/etc/kubernetes/manifests/kube-scheduler.yaml`	logs in kube-system
controller-manager	Control plane	`/etc/kubernetes/manifests/kube-controller-manager.yaml`	logs in kube-system
kubelet	Every node	`/var/lib/kubelet/config.yaml`, systemd service	systemctl status kubelet

Exam tip: Trên kubeadm cluster, control plane components chạy như static Pods (files trong /etc/kubernetes/manifests/). Kubelet tự động start/restart chúng. Khi sửa manifest file, kubelet tự reload Pod — không cần kubectl apply.

2. kubeadm — Cluster Bootstrap

# 1. Init control plane
kubeadm init --pod-network-cidr=10.244.0.0/16

# 2. Setup kubeconfig (sau khi init)
mkdir -p $HOME/.kube
cp /etc/kubernetes/admin.conf $HOME/.kube/config

# 3. Install CNI plugin (required trước khi nodes Ready)
kubectl apply -f https://raw.githubusercontent.com/flannel-io/flannel/master/Documentation/kube-flannel.yml

# 4. Join worker nodes (token từ kubeadm init output)
kubeadm join 192.168.1.10:6443 --token abc.xyz \
  --discovery-token-ca-cert-hash sha256:...

3. kubeconfig & Contexts

~/.kube/config structure:
  clusters:     → cluster API endpoints
  users:        → auth credentials (certificates, tokens)
  contexts:     → cluster + user + namespace combo
  current-context → active context

kubectl config commands:
  kubectl config get-contexts       # List contexts
  kubectl config use-context NAME   # Switch context
  kubectl config current-context    # Show active
  kubectl config set-context NAME --namespace=prod  # Set default ns

Exam tip: CKA có nhiều clusters. Câu hỏi đầu tiên luôn là: "switch sang đúng context trước khi làm". Nhớ kiểm tra kubectl config current-context.

4. Static Pods

Static Pods được kubelet quản lý trực tiếp, không qua API server. Config files nằm trong staticPodPath (thường là /etc/kubernetes/manifests/).

Static Pod	Khác Pod thường
Kubelet tạo trực tiếp	Không có ReplicaSet, không có Deployment
Không thể xóa qua kubectl delete	Phải xóa file manifest
Mirror Pod xuất hiện trên API server	Hiển thị kubectl get pods nhưng read-only

5. Cheat Sheet

Task	Command
Check control plane health	`kubectl get pods -n kube-system`
View apiserver config	`cat /etc/kubernetes/manifests/kube-apiserver.yaml`
Kubelet status	`systemctl status kubelet`
Kubelet logs	`journalctl -u kubelet -n 50`
Regenerate join token	`kubeadm token create --print-join-command`

6. Practice Questions

Q1: A cluster's kube-apiserver Pod is not running. You check /etc/kubernetes/manifests/kube-apiserver.yaml and find a syntax error. After fixing it, what happens?

A) You must run kubectl apply -f kube-apiserver.yaml
B) kubelet automatically detects the file change and restarts the static Pod ✓
C) kubeadm must be run to restart the control plane
D) The API server restart requires a full node reboot

Explanation: Static Pods are managed by kubelet, which watches the manifest directory for changes. When the YAML file is fixed, kubelet automatically kills the old Pod and starts a new one.

Q2: After running kubeadm init, a cluster admin runs kubectl get nodes and sees the control plane node with status "NotReady". What is the most likely cause?

A) kubeadm init failed to create etcd
B) CNI plugin has not been installed ✓
C) The kubelet service is not running
D) The cluster lacks worker nodes

Explanation: After kubeadm init, nodes remain NotReady until a CNI (Container Network Interface) plugin is installed. Without CNI, Pod networking doesn't work and nodes cannot report Ready.

Q3: An administrator needs to run kubectl commands on a different cluster. What is the fastest way to switch without modifying the current kubeconfig permanently?

A) Edit ~/.kube/config and change current-context
B) Use --context flag or kubectl config use-context ✓
C) Create a new kubeconfig file and delete the old one
D) Re-run kubeadm init with the target cluster
