Tạo và consume ConfigMaps và Secrets trong Kubernetes. Inject qua env vars (envFrom, valueFrom) và volume mounts. Secret types và security considerations.

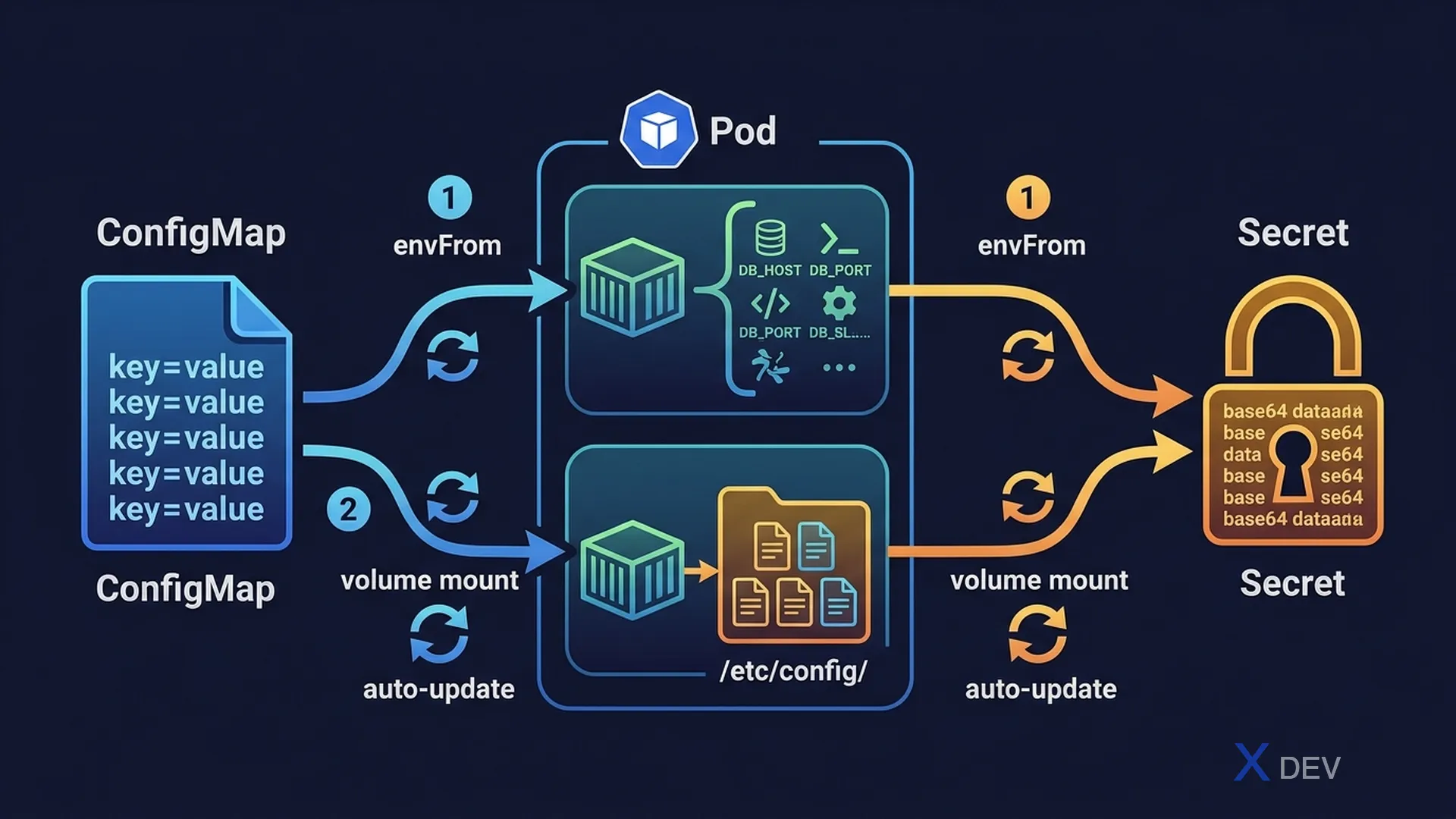

ConfigMap và Secret injection — envFrom, valueFrom và Volume Mount

1. ConfigMap

ConfigMap lưu trữ cặp key-value non-sensitive. Không được mã hóa (plain text).

# Tạo ConfigMap — Imperative
kubectl create configmap app-config \
  --from-literal=DB_HOST=mysql \
  --from-literal=DB_PORT=3306

kubectl create configmap app-config --from-file=config.properties
kubectl create configmap app-config --from-env-file=.env

# Declarative YAML
apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
data:
  DB_HOST: mysql
  DB_PORT: "3306"
  config.properties: |
    server.port=8080
    debug=false

2. Secret

Secret lưu trữ sensitive data. Được base64 encode (không phải mã hóa — encode thôi!).

# Tạo Secret — Imperative
kubectl create secret generic db-secret \
  --from-literal=username=admin \
  --from-literal=password=mypassword

kubectl create secret generic db-secret --from-file=credentials.txt

# Declarative (base64 encode trước)
echo -n 'admin' | base64    # YWRtaW4=
echo -n 'mypassword' | base64  # bXlwYXNzd29yZA==

apiVersion: v1
kind: Secret
metadata:
  name: db-secret
type: Opaque
data:
  username: YWRtaW4=
  password: bXlwYXNzd29yZA==

Secret Type	Mục đích
`Opaque`	Generic — default type, any key-value data
`kubernetes.io/dockerconfigjson`	Docker registry credentials
`kubernetes.io/tls`	TLS certificate và private key
`kubernetes.io/service-account-token`	ServiceAccount token (auto-created)

Exam tip: Secret data là base64 encoded, không encrypted. Bất kỳ ai có quyền đọc Secret đều có thể decode: echo 'YWRtaW4=' | base64 -d. Để encrypt at rest, phải enable EncryptionConfiguration — nhưng CKAD không test điều này. Exam thường test: tạo secret và inject vào Pod.

3. Inject qua Environment Variables

spec:
  containers:
  - name: app
    image: myapp

    # Method 1: envFrom — load ALL keys as env vars
    envFrom:
    - configMapRef:
        name: app-config
    - secretRef:
        name: db-secret

    # Method 2: valueFrom — load SPECIFIC key
    env:
    - name: DATABASE_HOST
      valueFrom:
        configMapKeyRef:
          name: app-config
          key: DB_HOST
    - name: DB_PASSWORD
      valueFrom:
        secretKeyRef:
          name: db-secret
          key: password

4. Inject qua Volume Mount

spec:
  volumes:
  - name: config-vol
    configMap:
      name: app-config
  - name: secret-vol
    secret:
      secretName: db-secret

  containers:
  - name: app
    image: myapp
    volumeMounts:
    - name: config-vol
      mountPath: /etc/config    # Each key becomes a file
    - name: secret-vol
      mountPath: /etc/secrets
      readOnly: true

  # Result: /etc/config/DB_HOST contains "mysql"
  #         /etc/secrets/password contains "mypassword" (decoded)

Method	Khi dùng	Auto-update khi CM/Secret đổi?
`envFrom` / `env.valueFrom`	App đọc env vars	Không (cần restart pod)
Volume mount	App đọc từ files, hoặc cần auto-reload	Có (sau ~1-2 phút)

Exam tip: Volume-mounted ConfigMaps/Secrets tự động update khi nguồn thay đổi (sau kubelet sync period ~1 phút). Env vars phải restart pod mới reflect changes. CKAD thường test cả 2 methods — nắm rõ syntax của configMapKeyRef vs configMapRef (có chữ "Key" thì là single key).

5. Cheat Sheet

Task	Command / YAML
Tạo CM từ literals	`kubectl create cm name --from-literal=k=v`
Tạo Secret từ literals	`kubectl create secret generic n --from-literal=k=v`
Load all CM keys as env	`envFrom: - configMapRef: name: ...`
Load specific key	`env: - valueFrom: configMapKeyRef: ...`
Mount as files	`volumes: configMap/secret + volumeMounts`

6. Practice Questions

Q1: A Pod needs to consume ALL key-value pairs from a ConfigMap named "app-settings" as environment variables. Which configuration is correct?

A) env: - name: APP_SETTINGS valueFrom: configMapRef: name: app-settings
B) envFrom: - configMapRef: name: app-settings ✓
C) volumes: - configMap: name: app-settings
D) env: - configMapKeyRef: name: app-settings key: "*"

Explanation: envFrom with configMapRef loads ALL keys from the ConfigMap as environment variables. env with valueFrom configMapKeyRef only loads ONE specific key. The wildcard "*" syntax does not exist.

Q2: You create a Secret with the command: kubectl create secret generic mysecret --from-literal=password=secret123. How is the data stored in etcd?

A) Plain text: "password=secret123"
B) AES-256 encrypted
C) Base64 encoded ✓
D) SHA-256 hashed

Explanation: By default, Kubernetes stores Secret data as base64 encoded values in etcd — NOT encrypted. Base64 is encoding, not encryption. Anyone with etcd access can decode it. To encrypt at rest, an EncryptionConfiguration must be configured separately.

Q3: A ConfigMap is updated with new values. A Pod is using this ConfigMap mounted as a volume at /etc/config. What happens?

A) The Pod fails immediately because the config changed
B) The files in /etc/config are automatically updated (with a short delay) ✓
C) Nothing happens — the Pod must be restarted to see changes
D) The Pod is restarted automatically by Kubernetes
