SecurityContext cho Pod và Container: runAsUser, runAsNonRoot, readOnlyRootFilesystem, Linux capabilities. ServiceAccount binding và automountServiceAccountToken.

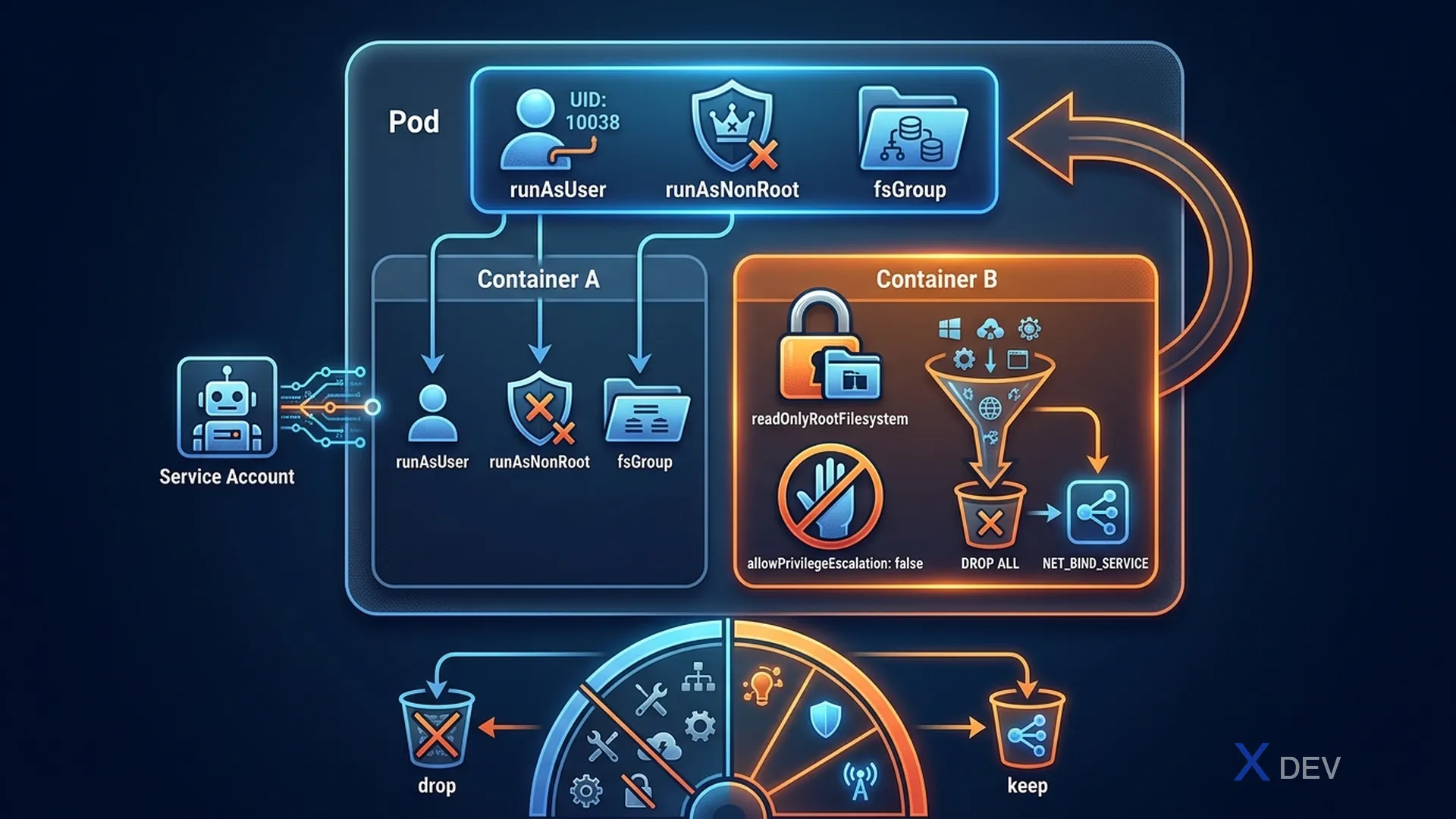

SecurityContext — Pod-level vs Container-level, Linux capabilities

1. SecurityContext

SecurityContext định nghĩa các privilege và access control settings cho Pod hoặc Container.

apiVersion: v1
kind: Pod
spec:
  securityContext:            # Pod-level: applies to ALL containers
    runAsUser: 1000           # UID để chạy containers
    runAsGroup: 3000          # GID primary group
    fsGroup: 2000             # GID cho mounted volumes
    runAsNonRoot: true        # Reject containers that run as root

  containers:
  - name: app
    image: myapp
    securityContext:          # Container-level: overrides pod-level
      allowPrivilegeEscalation: false
      readOnlyRootFilesystem: true   # Filesystem là read-only
      capabilities:
        add: ["NET_BIND_SERVICE"]    # Add capability
        drop: ["ALL"]               # Drop all, add only what needed

Setting	Level	Tác dụng
`runAsUser`	Pod/Container	Chạy process với UID cụ thể
`runAsNonRoot`	Pod/Container	Từ chối chạy nếu UID = 0 (root)
`readOnlyRootFilesystem`	Container	Mount root filesystem read-only
`allowPrivilegeEscalation`	Container	Chặn privilege escalation (sudo etc.)
`privileged`	Container	Run as privileged (như root trên host)
`fsGroup`	Pod	GID cho volume files (shared volume access)

Exam tip: Container-level securityContext override Pod-level settings. Nếu Pod có runAsUser: 1000 và container có runAsUser: 2000, container đó chạy với UID 2000. Hay bị test: verify user bằng kubectl exec pod -- id hoặc whoami.

2. Linux Capabilities

Capabilities cho phép grant specific privileges mà không cần full root.

# Ví dụ thường gặp:
NET_BIND_SERVICE  — Bind to port < 1024 (e.g., port 80)
NET_ADMIN         — Network administration (ifconfig etc.)
SYS_TIME          — Modify system clock
CHOWN             — Change file ownership
SETUID/SETGID     — Change user/group ID

securityContext:
  capabilities:
    drop: ["ALL"]             # Best practice: drop all first
    add: ["NET_BIND_SERVICE"] # Then re-add only what's needed

3. ServiceAccounts

Pod dùng ServiceAccount để authenticate với Kubernetes API.

# Tạo ServiceAccount
kubectl create serviceaccount my-sa

# Bind vào Role
kubectl create rolebinding my-binding \
  --role=pod-reader \
  --serviceaccount=default:my-sa

# Assign SA cho Pod
spec:
  serviceAccountName: my-sa     # Use specific SA
  automountServiceAccountToken: false  # Don't auto-mount SA token

# Mặc định: default SA được mount tại /var/run/secrets/kubernetes.io/serviceaccount/
# Token file có thể gọi K8s API từ container

Concept	Mô tả
Default SA	Mỗi namespace có sẵn `default` SA (ít quyền)
Token mount	Token tự động mount vào pod nếu không tắt
`automountServiceAccountToken: false`	Tắt việc mount token (best security practice)

Exam tip: Khi Pod cần gọi Kubernetes API (ví dụ: operator pattern), cần ServiceAccount có quyền phù hợp. Nếu Pod không cần gọi API, best practice là set automountServiceAccountToken: false. CKAD thường test: tạo SA, bind role, và set SA trong Pod spec.

4. readOnlyRootFilesystem với emptyDir

# Khi dùng readOnlyRootFilesystem: true, app KHÔNG ghi vào root FS.
# Nhưng app vẫn cần ghi temp files → dùng emptyDir volume:

spec:
  containers:
  - name: app
    image: myapp
    securityContext:
      readOnlyRootFilesystem: true
    volumeMounts:
    - name: tmp
      mountPath: /tmp        # App ghi temp files vào đây
    - name: cache
      mountPath: /app/cache
  volumes:
  - name: tmp
    emptyDir: {}
  - name: cache
    emptyDir: {}

5. Cheat Sheet

Task	YAML / Command
Run container as non-root	`securityContext: runAsNonRoot: true`
Run với specific UID	`securityContext: runAsUser: 1000`
Read-only filesystem	`securityContext: readOnlyRootFilesystem: true`
Drop all capabilities	`capabilities: drop: ["ALL"]`
Gán ServiceAccount	`spec: serviceAccountName: my-sa`
Verify user trong container	`kubectl exec pod -- whoami`

6. Practice Questions

Q1: A Pod spec has securityContext.runAsUser: 1000 at the Pod level. One container within the Pod has securityContext.runAsUser: 2000. What UID does that container run with?

A) 0 (root, because Pod-level overrides)
B) 1000 (Pod-level takes priority)
C) 2000 (Container-level overrides Pod-level) ✓
D) Both UIDs simultaneously

Explanation: Container-level securityContext settings override Pod-level settings. The container runs with UID 2000. Other containers in the same Pod without a container-level securityContext.runAsUser would inherit the Pod-level UID of 1000.

Q2: An application container needs to bind to port 80 (a privileged port below 1024) but should NOT run as root. How do you configure this?

A) Set securityContext.privileged: true
B) Set securityContext.runAsUser: 0
C) Add NET_BIND_SERVICE capability while dropping ALL others ✓
D) Use a NodePort Service instead of port 80

Explanation: Linux capabilities allow granular privilege grants. NET_BIND_SERVICE allows binding to ports below 1024 without full root. Best practice is to drop ALL capabilities first, then add only what's needed: capabilities: { drop: ["ALL"], add: ["NET_BIND_SERVICE"] }.

Q3: A Pod is running with readOnlyRootFilesystem: true, but the application tries to write to /tmp and fails. What is the best solution?

A) Remove readOnlyRootFilesystem: true
B) Set securityContext.privileged: true
C) Mount an emptyDir volume at /tmp ✓
D) Use a ConfigMap mounted at /tmp
