Giới thiệu
Với 10+ microservices và 5+ micro frontends, CI/CD Pipeline là xương sống cho independent deployment. Bài này thiết kế pipeline end-to-end: từ commit đến production.

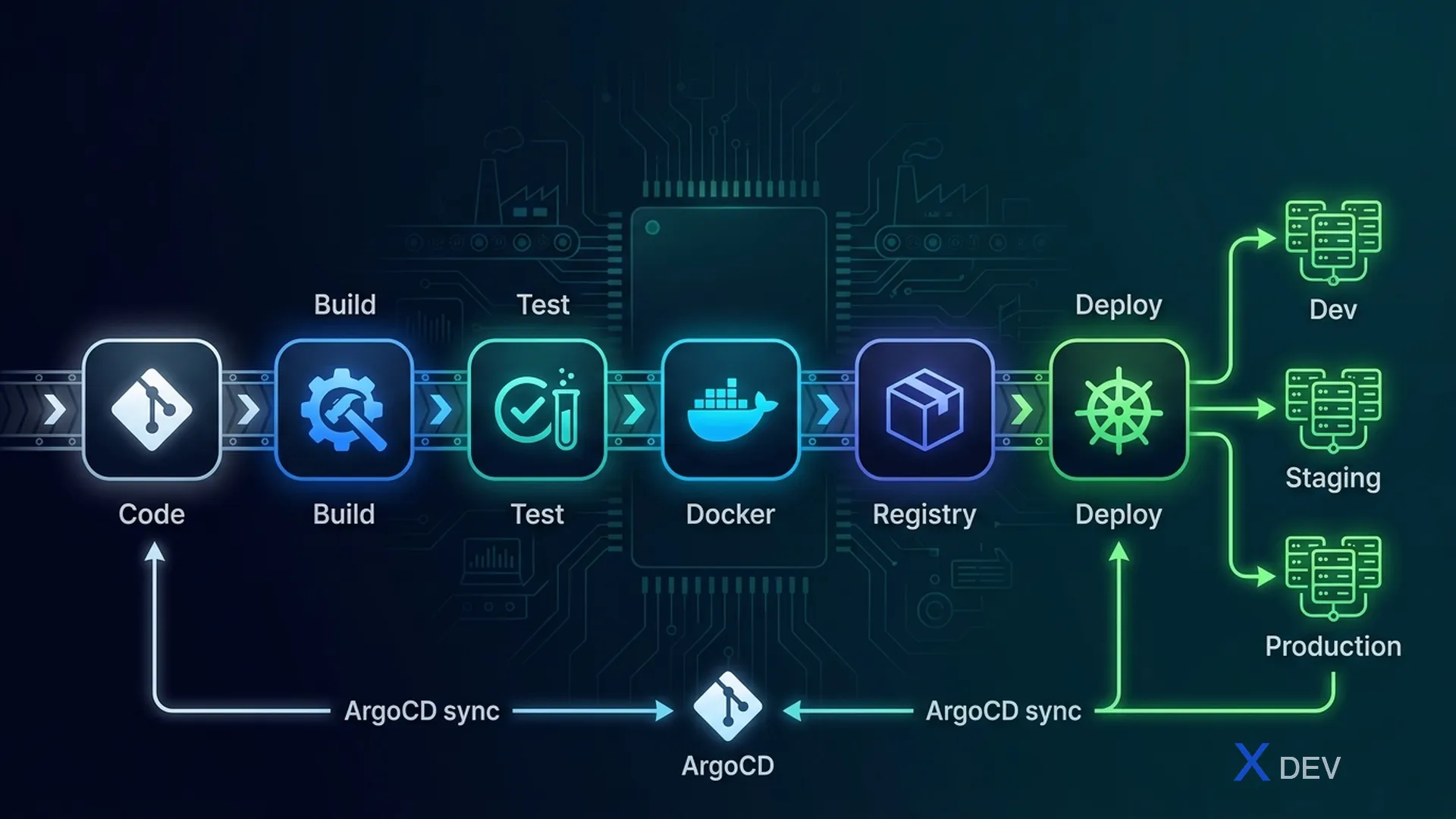

1. CI/CD Architecture
┌─────────────────────────────────────────────────┐
│ Developer pushes code │
└──────────────────────┬──────────────────────────┘
│
┌──────────────────────┴──────────────────────────┐
│ CI Pipeline (GitHub Actions) │
│ ┌─────────┐ ┌──────────┐ ┌───────────────────┐ │
│ │ Lint │ │ Build │ │ Test │ │
│ │ & Type │→│ & Compile│→│ Unit + Integration│ │
│ │ Check │ │ │ │ + Contract │ │
│ └─────────┘ └──────────┘ └───────────────────┘ │
│ │ │
│ ┌──────────────┴──────────┐ │
│ │ Docker Build & Push │ │
│ │ → Container Registry │ │
│ └──────────────┬──────────┘ │
└────────────────────────────────────┼────────────┘
│
┌────────────────────────────────────┴────────────┐
│ CD Pipeline (ArgoCD - GitOps) │
│ │
│ ┌──────────┐ ┌──────────┐ ┌────────────────┐ │
│ │ Staging │→ │ Smoke │→ │ Production │ │
│ │ Deploy │ │ Tests │ │ Deploy │ │
│ │ │ │ │ │ (Progressive) │ │
│ └──────────┘ └──────────┘ └────────────────┘ │
└─────────────────────────────────────────────────┘
2. CI Pipeline (GitHub Actions)
2.1 Microservice Pipeline
# .github/workflows/service-ci.yml
name: Service CI
on:
push:
paths:
- 'services/product-service/**'
- 'packages/shared-types/**'
jobs:
ci:
runs-on: ubuntu-latest
steps:
- uses: actions/checkout@v4
- name: Lint & Type Check
run: turbo lint typecheck --filter=product-service
- name: Unit Tests
run: turbo test --filter=product-service
- name: Integration Tests
run: turbo test:integration --filter=product-service
services:
postgres:
image: postgres:16
env:
POSTGRES_DB: test
- name: Contract Verification
run: turbo test:pact --filter=product-service
- name: Docker Build & Push
run: |
docker build -t ghcr.io/company/product-service:${{ github.sha }} \
-f services/product-service/Dockerfile .
docker push ghcr.io/company/product-service:${{ github.sha }}
2.2 Micro Frontend Pipeline
# .github/workflows/mfe-ci.yml
name: MFE CI
on:
push:
paths:
- 'apps/product-mfe/**'
- 'packages/shared-ui/**'
jobs:
ci:
runs-on: ubuntu-latest
steps:
- uses: actions/checkout@v4
- name: Install & Build
run: turbo build --filter=product-mfe...
- name: Test
run: turbo test --filter=product-mfe
- name: Visual Regression
uses: chromatic/action@v1
with:
projectToken: ${{ secrets.CHROMATIC_TOKEN }}
- name: Deploy to CDN
run: |
aws s3 sync apps/product-mfe/dist/ \
s3://mfe-cdn/product-mfe/${{ github.sha }}/
aws cloudfront create-invalidation \
--distribution-id $CF_ID \
--paths "/product-mfe/*"
3. Docker Multi-Stage Build
# services/product-service/Dockerfile
# Stage 1: Build
FROM node:20-alpine AS builder
WORKDIR /app
COPY package*.json ./
RUN npm ci --production=false
COPY . .
RUN npm run build
# Stage 2: Production
FROM node:20-alpine AS runner
WORKDIR /app
RUN addgroup -S appgroup && adduser -S appuser -G appgroup
COPY --from=builder /app/dist ./dist
COPY --from=builder /app/node_modules ./node_modules
COPY --from=builder /app/package.json ./
USER appuser
EXPOSE 8080
CMD ["node", "dist/main.js"]
4. GitOps with ArgoCD
4.1 GitOps Workflow
Developer pushes code → CI builds image → CI updates manifests repo
│
ArgoCD watches manifests repo ──────────────────────┘
ArgoCD syncs K8s cluster to match manifests
4.2 Kustomize Overlay
# k8s/overlays/production/product-service.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: product-service
spec:
replicas: 3
template:
spec:
containers:
- name: product-service
image: ghcr.io/company/product-service:abc123
resources:
requests:
cpu: 100m
memory: 256Mi
limits:
cpu: 500m
memory: 512Mi
5. Parallel Pipelines
Commit changes to:
├── services/product-service/ → Product Service Pipeline
├── apps/product-mfe/ → Product MFE Pipeline
└── packages/shared-ui/ → Shared UI Pipeline
↓
Triggers dependent:
→ Product MFE Pipeline
→ Cart MFE Pipeline
→ All MFE consumers
Turborepo --filter=...[origin/main] tự động detect affected packages.
6. Pipeline Best Practices
| Practice | Mô tả |
|---|---|
| Fail fast | Lint → Unit → Integration (tốn ít thời gian trước) |
| Parallel jobs | Lint + Test chạy song song |
| Caching | npm cache, Docker layer cache, Turborepo remote cache |
| Affected only | Chỉ build/test packages thay đổi |
| Immutable artifacts | Tag images bằng git SHA |
| GitOps | Separate config repo, ArgoCD sync |
Tóm tắt
- CI: Lint → Build → Test → Docker → Push (per service/MFE)
- CD: GitOps với ArgoCD, declarative K8s manifests
- Turborepo: affected detection, chỉ build packages thay đổi
- Docker multi-stage: small, secure production images
- Parallel pipelines: mỗi service/MFE có pipeline riêng
Bài tiếp theo: Bài 25: Deployment Strategies — Blue/Green, Canary & Rolling
