Thiết kế kiến trúc microservices bảo mật cho hệ thống y tế sử dụng Quarkus, PostgreSQL, Keycloak. Bao gồm API Gateway pattern, service mesh, event-driven architecture với Kafka, network segmentation, DMZ design, và blueprint kiến trúc tham chiếu cho HIS/EMR/LIS.

Xây dựng Hệ thống Y tế Microservices — Quarkus, PostgreSQL, Keycloak chuẩn HIPAA

Phần 1: Kiến trúc & Nền tảng

xdev.asia

1. Tổng quan Kiến trúc Healthcare Microservices

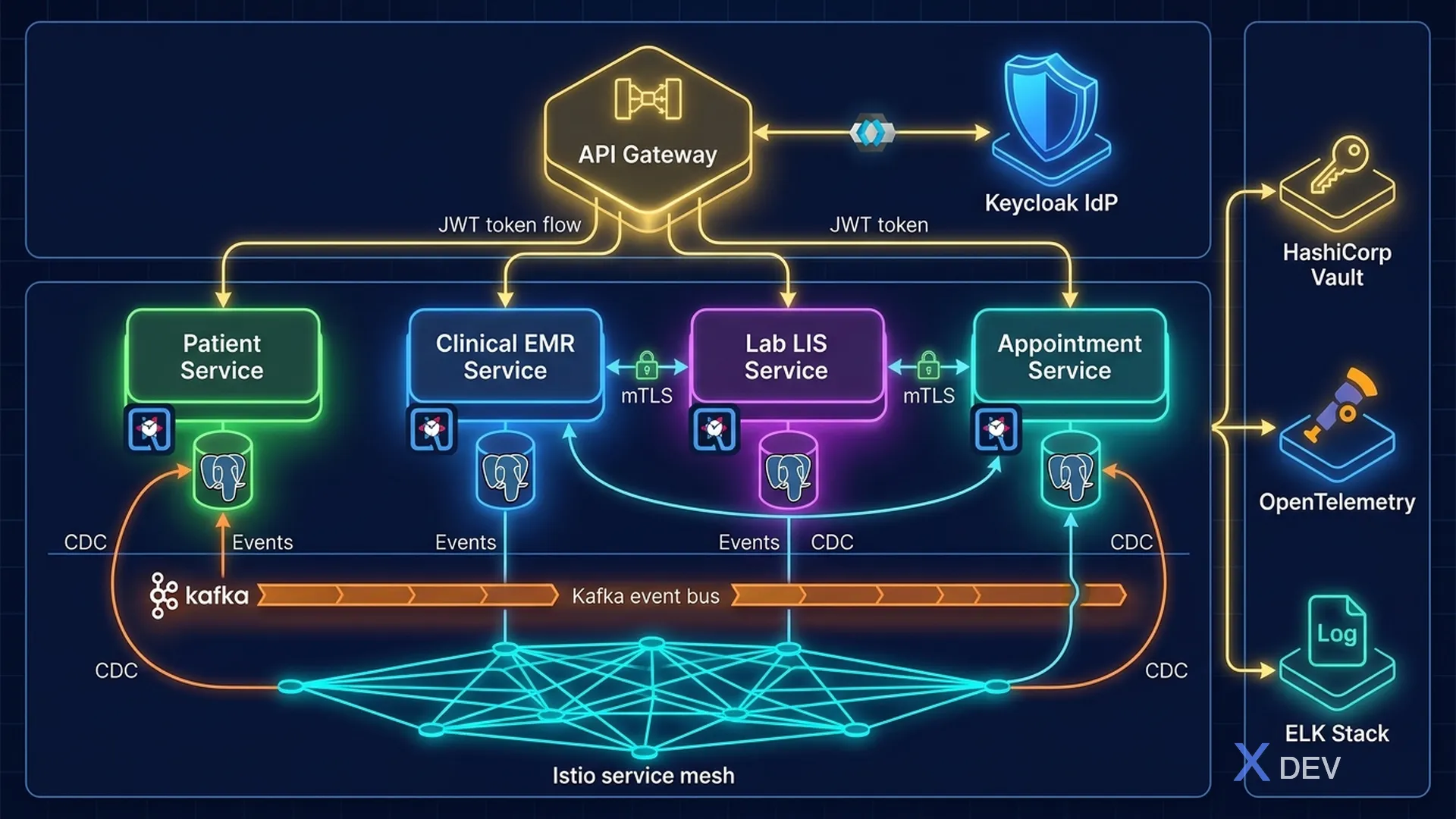

Kiến trúc tổng thể Healthcare Microservices — Quarkus, PostgreSQL, Keycloak, Kafka, Istio

1.1. Tại sao Microservices cho Y Tế?

Hệ thống y tế truyền thống (monolithic) gặp nhiều thách thức:

Downtime ảnh hưởng toàn bộ: Lỗi một module (lab) ảnh hưởng toàn bộ HIS
Khó scale: Không thể scale riêng module có load cao (EMR) mà không scale cả hệ thống
Security blast radius lớn: Một lỗ hổng có thể compromise toàn bộ dữ liệu
Khó cập nhật: Patch bảo mật cần redeploy toàn bộ

Microservices giải quyết bằng cách:

Isolation: Mỗi service có database riêng, breach một service không ảnh hưởng service khác
Independent deployment: Patch bảo mật cho từng service mà không ảnh hưởng hệ thống
Selective scaling: Scale service có demand cao (appointment booking vào giờ cao điểm)
Technology diversity: Mỗi service chọn tech stack phù hợp nhất

1.2. Healthcare Domain Services

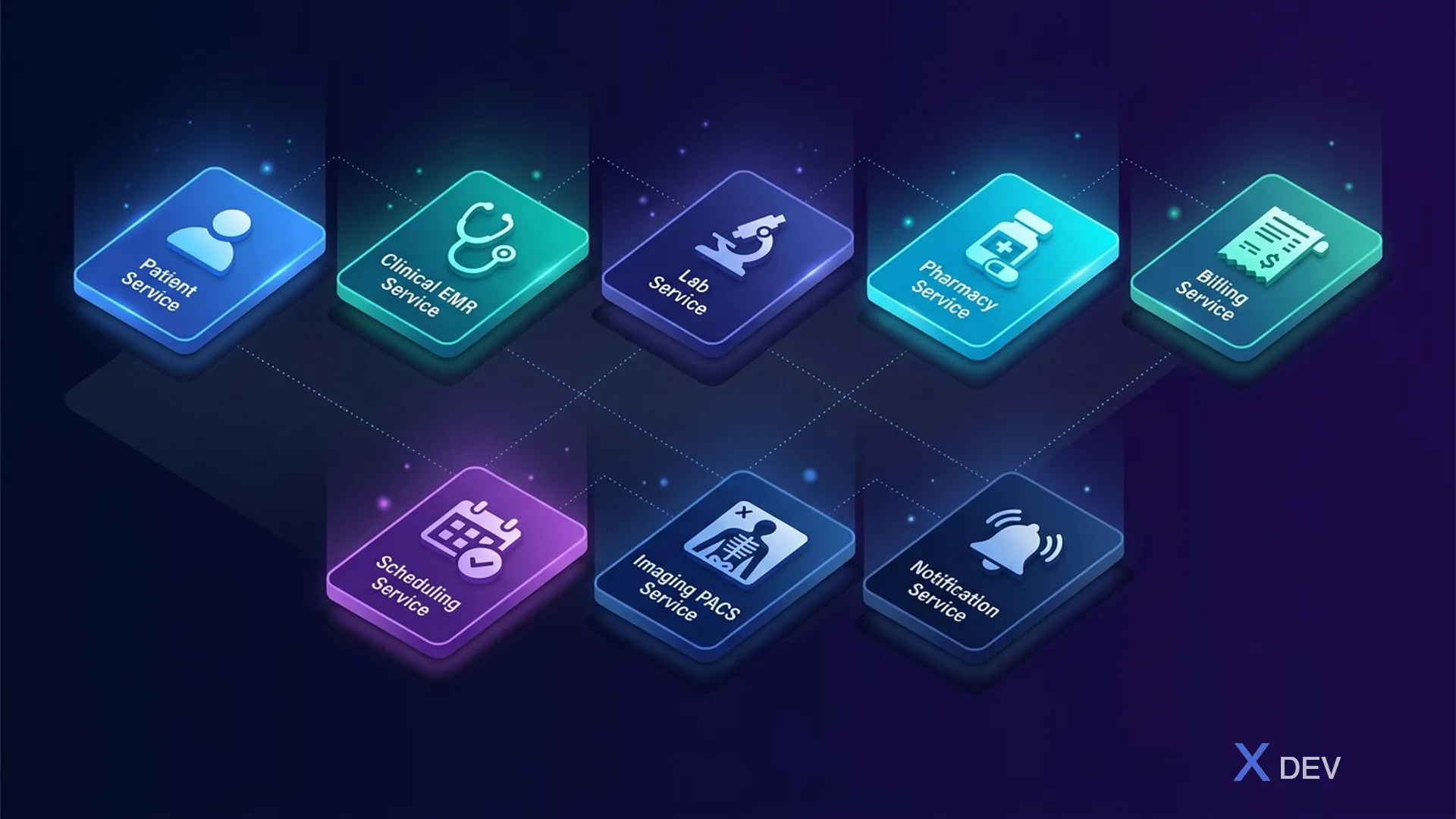

Tổng quan các Healthcare Microservices — 8 domain services chính trong hệ thống y tế

Core Services:

Service	Chức năng chính
Patient Service	Patient Registry, Demographics
Clinical Service (EMR)	Encounters, Diagnosis, Notes, Vitals
Lab Service (LIS)	Orders, Results, Specimens, Reports
Pharmacy Service	Prescriptions, Dispensing, Drug DB
Billing Service	Invoices, Insurance, Claims, Payments
Scheduling Service	Appointments, Calendar, Waitlist
Imaging Service (RIS/PACS)	Studies, Reports
Notification Service	SMS/Email, Push, Alerts

2. Reference Architecture: Secure Healthcare Platform

2.1. High-Level Architecture

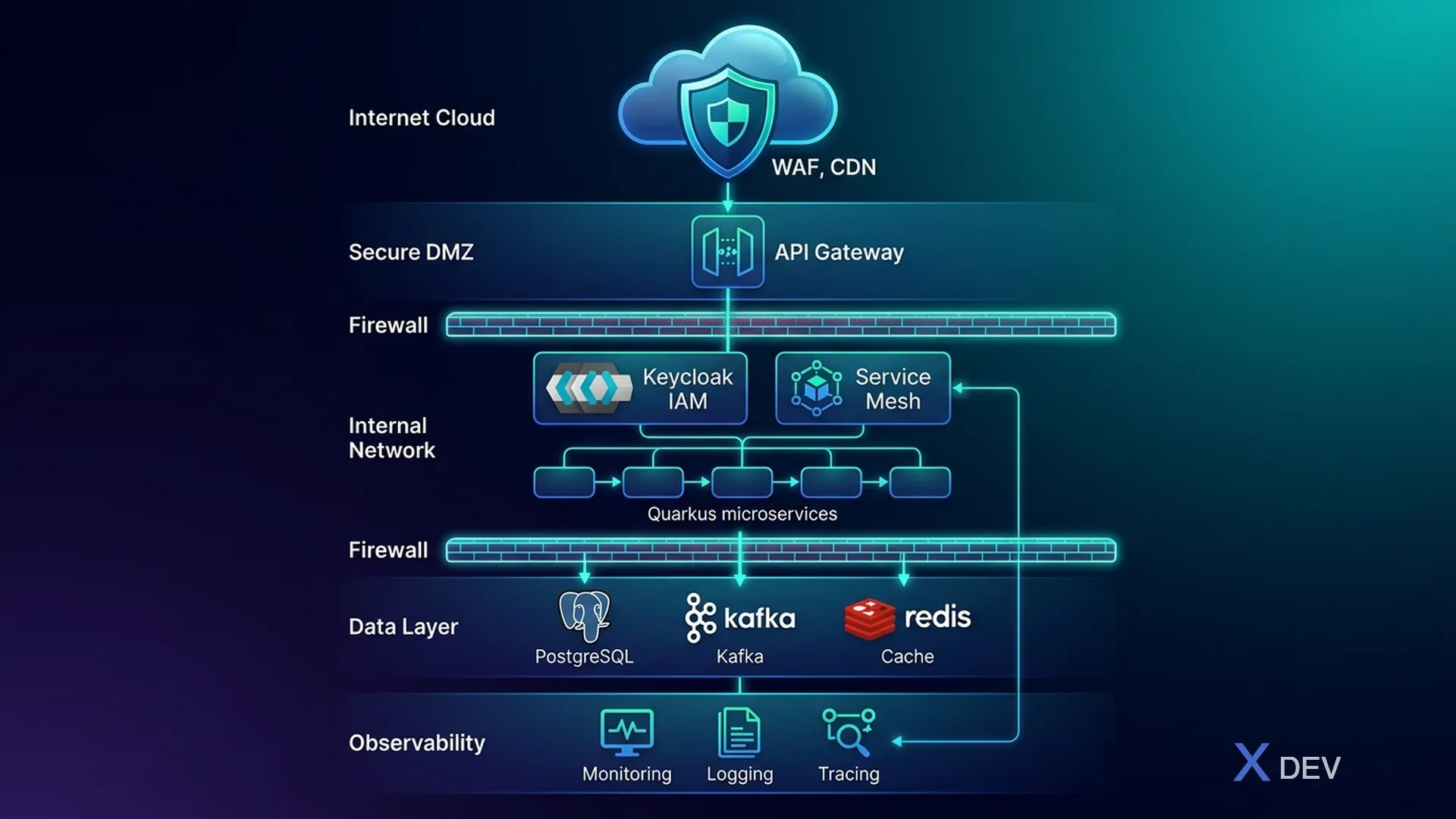

Kiến trúc tổng quan Healthcare Platform — từ Internet qua WAF, DMZ, API Gateway đến Internal Network

2.2. Network Segmentation (Defense-in-Depth)

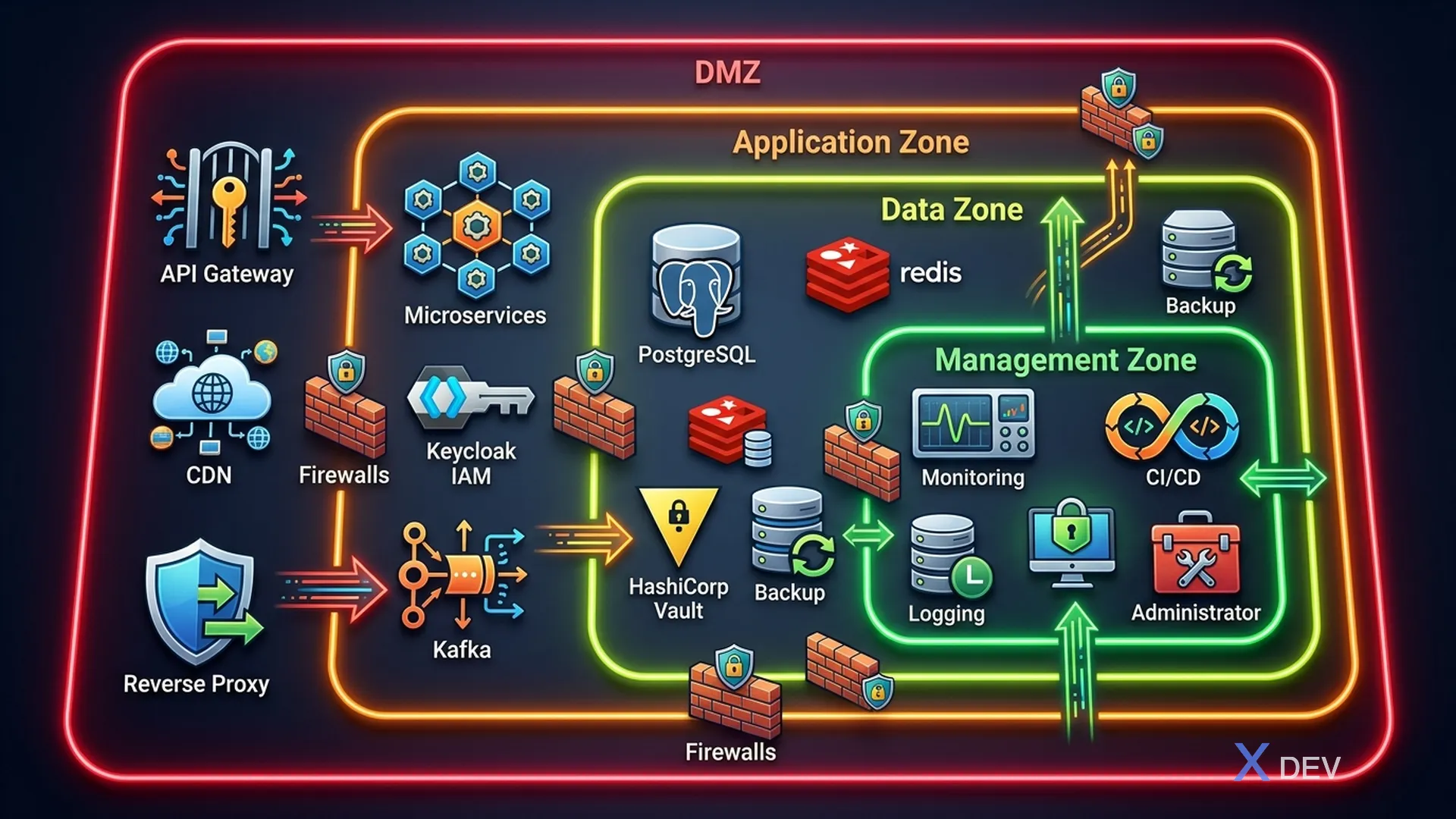

Mô hình Defense-in-Depth với 4 vùng mạng — DMZ, Application, Data, Management

Zone	Thành phần
Zone 1: DMZ	API Gateway, Static content / CDN origin, Reverse Proxy
Zone 2: Application	Quarkus Microservices, Keycloak, Message Queue (Kafka)
Zone 3: Data (Most restricted)	PostgreSQL Clusters, Redis Cache, Backup Storage, Key Management (Vault)
Zone 4: Management	Monitoring (Prometheus, Grafana), Logging (ELK Stack), CI/CD Pipeline, Admin Access

Firewall Rules giữa các zones:

DMZ → Application: Chỉ ports cụ thể (443, 8080)
Application → Data: Chỉ database ports (5432, 6379, 9092)
Data → Anywhere: Không cho phép outbound
Management → All: Read-only monitoring access

3. Quarkus Microservices Security Architecture

3.1. Quarkus Security Stack

<!-- pom.xml - Security dependencies -->
<dependencies>
    <!-- OIDC Authentication with Keycloak -->
    <dependency>
        <groupId>io.quarkus</groupId>
        <artifactId>quarkus-oidc</artifactId>
    </dependency>

    <!-- JWT Token Processing -->
    <dependency>
        <groupId>io.quarkus</groupId>
        <artifactId>quarkus-smallrye-jwt</artifactId>
    </dependency>

    <!-- Reactive PostgreSQL with encryption support -->
    <dependency>
        <groupId>io.quarkus</groupId>
        <artifactId>quarkus-reactive-pg-client</artifactId>
    </dependency>

    <!-- Hibernate ORM with Panache -->
    <dependency>
        <groupId>io.quarkus</groupId>
        <artifactId>quarkus-hibernate-orm-panache</artifactId>
    </dependency>

    <!-- OpenTelemetry for distributed tracing -->
    <dependency>
        <groupId>io.quarkus</groupId>
        <artifactId>quarkus-opentelemetry</artifactId>
    </dependency>

    <!-- Health checks -->
    <dependency>
        <groupId>io.quarkus</groupId>
        <artifactId>quarkus-smallrye-health</artifactId>
    </dependency>

    <!-- Kafka for event streaming -->
    <dependency>
        <groupId>io.quarkus</groupId>
        <artifactId>quarkus-smallrye-reactive-messaging-kafka</artifactId>
    </dependency>
</dependencies>

3.2. Application Configuration

# application.properties - Security Configuration

# === OIDC/Keycloak Configuration ===
quarkus.oidc.auth-server-url=https://keycloak.hospital.internal/realms/healthcare
quarkus.oidc.client-id=patient-service
quarkus.oidc.credentials.secret=${OIDC_CLIENT_SECRET}
quarkus.oidc.tls.verification=required

# === Database Security ===
quarkus.datasource.db-kind=postgresql
quarkus.datasource.jdbc.url=jdbc:postgresql://pg-primary.data-zone:5432/patient_db?ssl=true&sslmode=verify-full
quarkus.datasource.username=${DB_USERNAME}
quarkus.datasource.password=${DB_PASSWORD}
quarkus.datasource.jdbc.min-size=5
quarkus.datasource.jdbc.max-size=20

# === TLS Configuration ===
quarkus.http.ssl.certificate.files=/certs/tls.crt
quarkus.http.ssl.certificate.key-files=/certs/tls.key
quarkus.http.ssl-port=8443
quarkus.http.insecure-requests=disabled

# === Security Headers ===
quarkus.http.header."Strict-Transport-Security".value=max-age=31536000; includeSubDomains
quarkus.http.header."X-Content-Type-Options".value=nosniff
quarkus.http.header."X-Frame-Options".value=DENY
quarkus.http.header."Content-Security-Policy".value=default-src 'self'

# === CORS (restricted) ===
quarkus.http.cors=true
quarkus.http.cors.origins=https://portal.hospital.vn,https://admin.hospital.vn
quarkus.http.cors.methods=GET,POST,PUT,DELETE
quarkus.http.cors.headers=Authorization,Content-Type

# === OpenTelemetry ===
quarkus.otel.exporter.otlp.endpoint=https://otel-collector.management-zone:4317
quarkus.otel.resource.attributes=service.name=patient-service,deployment.environment=production

3.3. Service-to-Service Communication Pattern

// Secure service-to-service communication với token propagation
@Path("/api/v1/patients")
@Authenticated
@RolesAllowed({"doctor", "nurse", "admin"})
public class PatientResource {

    @Inject
    @RestClient
    LabServiceClient labClient;

    @Inject
    SecurityIdentity securityIdentity;

    @Inject
    AuditService auditService;

    @GET
    @Path("/{patientId}/lab-results")
    @RolesAllowed({"doctor"})
    public Response getPatientLabResults(
            @PathParam("patientId") UUID patientId) {

        // Audit log: WHO accessed WHAT
        auditService.log(AuditEvent.builder()
            .action("READ")
            .resource("PatientLabResults")
            .resourceId(patientId.toString())
            .actor(securityIdentity.getPrincipal().getName())
            .actorRoles(securityIdentity.getRoles())
            .build());

        // Token propagation - forward JWT to downstream service
        List<LabResult> results = labClient.getResultsByPatient(patientId);

        return Response.ok(results).build();
    }
}

4. Database-per-Service Pattern cho Healthcare

4.1. Data Isolation Strategy

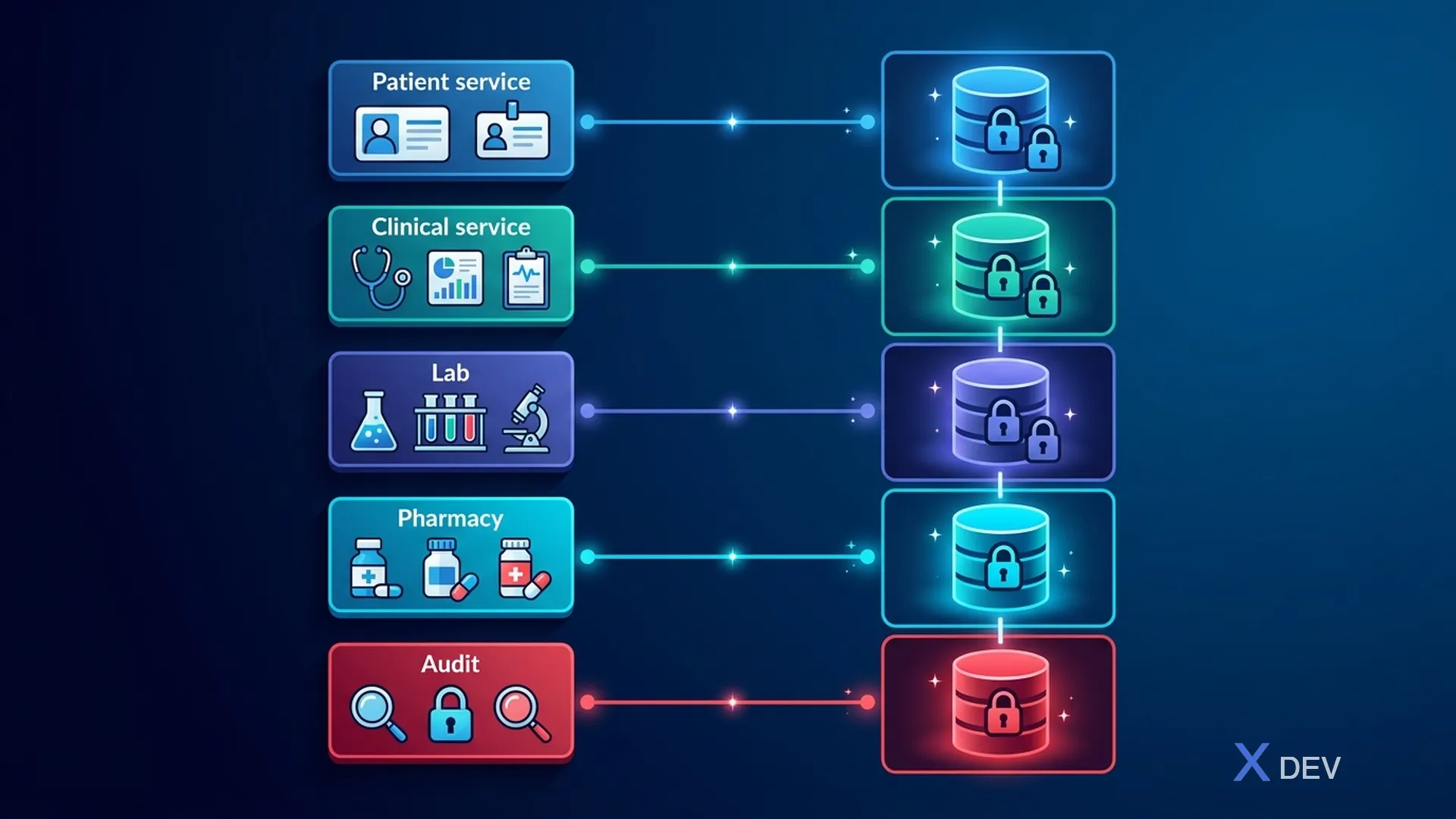

Database-per-Service pattern — mỗi microservice có database riêng biệt với data isolation

Service	Database	Tables
Patient Service	patient_db	patients (demographics, contacts), patient_consents, patient_identifiers
Clinical Service	clinical_db	encounters, diagnoses, clinical_notes (encrypted), vital_signs
Lab Service	lab_db	lab_orders, lab_results (encrypted), specimens, reference_ranges
Pharmacy Service	pharmacy_db	prescriptions, dispensing_records, drug_interactions
Audit Service	audit_db (append-only)	audit_events (immutable), access_logs, security_incidents

4.2. Shared Data via Events (Event Sourcing)

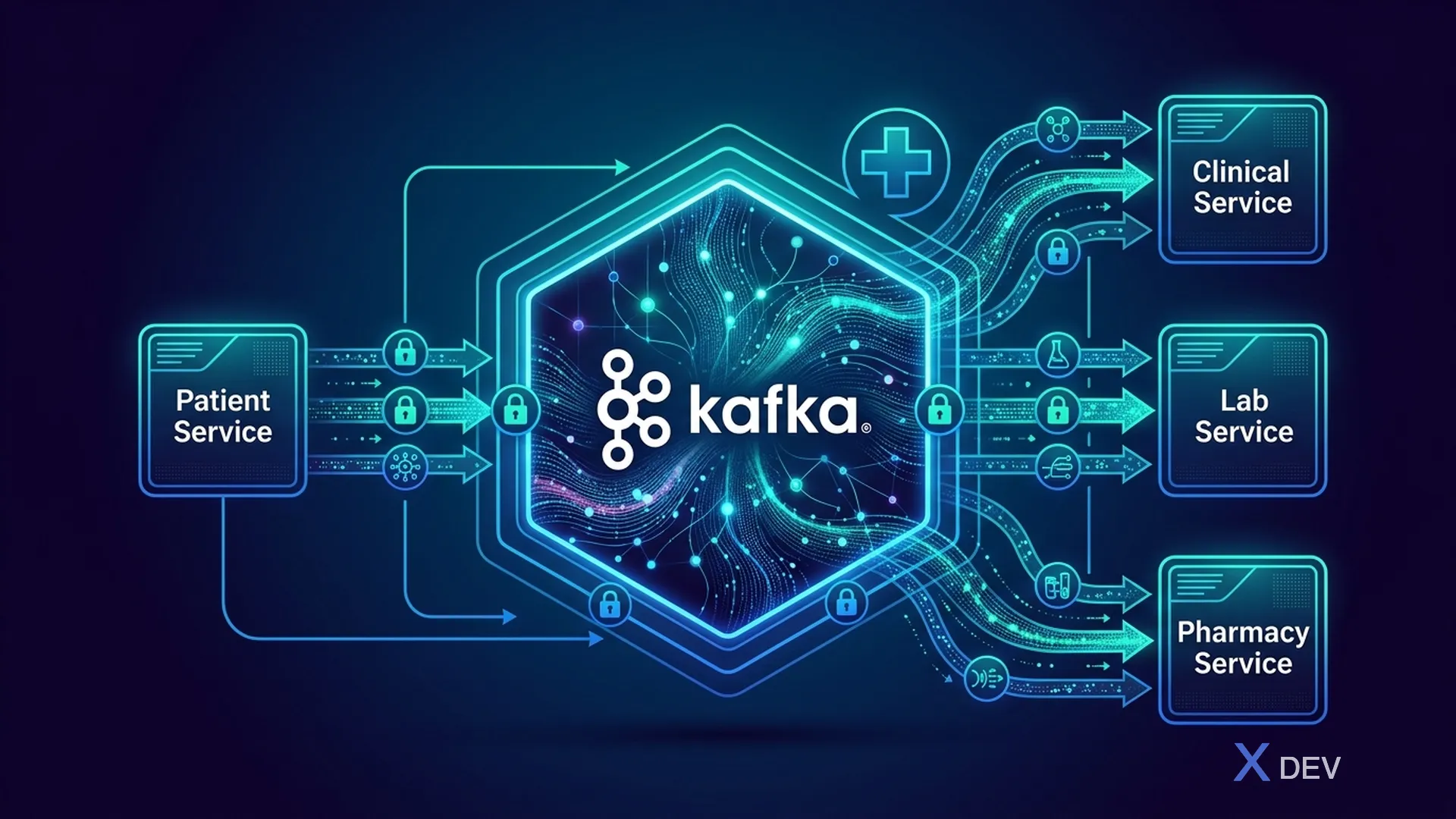

Event-driven architecture — Patient Service publish events qua Kafka đến các consuming services

Quan trọng: Kafka messages chứa PHI phải được mã hóa. Sử dụng Kafka encryption at-rest và application-level encryption cho sensitive fields.

5. API Gateway Security

5.1. Kong Gateway Configuration cho Healthcare

# kong.yml - Healthcare API Gateway Configuration
_format_version: "3.0"

services:
  - name: patient-service
    url: https://patient-service.app-zone:8443
    routes:
      - name: patient-api
        paths:
          - /api/v1/patients
        protocols:
          - https
    plugins:
      # Rate limiting per consumer
      - name: rate-limiting
        config:
          minute: 100
          hour: 1000
          policy: redis
          redis_host: redis.data-zone
          redis_port: 6379
          redis_ssl: true

      # JWT validation (delegated to Keycloak)
      - name: openid-connect
        config:
          issuer: https://keycloak.hospital.internal/realms/healthcare
          client_id: kong-gateway
          client_secret: ${KONG_OIDC_SECRET}
          bearer_only: "yes"
          ssl_verify: true

      # Request size limiting (prevent oversized payloads)
      - name: request-size-limiting
        config:
          allowed_payload_size: 10  # MB
          size_unit: megabytes

      # IP restriction for admin endpoints
      - name: ip-restriction
        config:
          allow:
            - 10.0.0.0/8      # Internal network
            - 172.16.0.0/12   # Docker networks

      # Request/Response transformation (strip sensitive headers)
      - name: response-transformer
        config:
          remove:
            headers:
              - X-Powered-By
              - Server

      # Correlation ID for audit trail
      - name: correlation-id
        config:
          header_name: X-Correlation-ID
          generator: uuid
          echo_downstream: true

6. Event-Driven Security Architecture

6.1. Security Events Flow

// Security event schema cho Kafka
public record SecurityEvent(
    String eventId,
    Instant timestamp,
    String eventType,        // ACCESS, MODIFY, DELETE, EXPORT, PRINT
    String actor,            // User ID from Keycloak
    String actorRole,        // doctor, nurse, admin
    String actorDepartment,  // Khoa Nội, Khoa Ngoại
    String resource,         // PatientRecord, LabResult
    String resourceId,       // Patient ID, Record ID
    String action,           // READ, WRITE, DELETE
    String outcome,          // SUCCESS, FAILURE, DENIED
    String sourceIp,
    String sourceDevice,
    Map<String, String> additionalContext
) {}

6.2. Kafka Topic Design cho Healthcare

healthcare.audit.access          # All PHI access events
healthcare.audit.modifications   # Data changes
healthcare.audit.authentication  # Login/logout events
healthcare.audit.authorization   # Permission denied events
healthcare.security.incidents    # Security incidents
healthcare.consent.changes       # Patient consent updates
healthcare.patient.events        # Patient lifecycle events (encrypted)
healthcare.clinical.events       # Clinical data changes (encrypted)

7. Infrastructure as Code - Secure Deployment

7.1. Docker Compose cho Development

# docker-compose.yml - Secure Healthcare Dev Environment
version: '3.8'

services:
  keycloak:
    image: quay.io/keycloak/keycloak:26.0
    command: start-dev --import-realm
    environment:
      KC_DB: postgres
      KC_DB_URL: jdbc:postgresql://keycloak-db:5432/keycloak
      KC_DB_USERNAME: keycloak
      KC_DB_PASSWORD: ${KC_DB_PASSWORD}
      KC_HOSTNAME: localhost
      KC_HTTPS_CERTIFICATE_FILE: /opt/keycloak/certs/tls.crt
      KC_HTTPS_CERTIFICATE_KEY_FILE: /opt/keycloak/certs/tls.key
    volumes:
      - ./keycloak/realm-healthcare.json:/opt/keycloak/data/import/realm.json
      - ./certs:/opt/keycloak/certs:ro
    ports:
      - "8443:8443"
    networks:
      - app-network

  postgres-patient:
    image: postgres:16-alpine
    environment:
      POSTGRES_DB: patient_db
      POSTGRES_USER: patient_svc
      POSTGRES_PASSWORD: ${PG_PATIENT_PASSWORD}
      POSTGRES_INITDB_ARGS: "--auth-host=scram-sha-256 --data-checksums"
    volumes:
      - ./sql/init-patient.sql:/docker-entrypoint-initdb.d/01-init.sql
      - ./sql/rls-policies.sql:/docker-entrypoint-initdb.d/02-rls.sql
      - patient-data:/var/lib/postgresql/data
    command: >
      postgres
        -c ssl=on
        -c ssl_cert_file=/certs/server.crt
        -c ssl_key_file=/certs/server.key
        -c shared_preload_libraries='pgaudit,pgcrypto'
        -c pgaudit.log='read,write,ddl'
        -c log_connections=on
        -c log_disconnections=on
        -c password_encryption=scram-sha-256
    networks:
      - data-network

  kafka:
    image: confluentinc/cp-kafka:7.6.0
    environment:
      KAFKA_BROKER_ID: 1
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: INTERNAL:SSL
      KAFKA_SSL_KEYSTORE_LOCATION: /certs/kafka.keystore.jks
      KAFKA_SSL_KEYSTORE_PASSWORD: ${KAFKA_KEYSTORE_PASSWORD}
      KAFKA_SSL_TRUSTSTORE_LOCATION: /certs/kafka.truststore.jks
    networks:
      - app-network
      - data-network

networks:
  app-network:
    driver: bridge
  data-network:
    driver: bridge
    internal: true  # No external access to data network

volumes:
  patient-data:
    driver: local

8. Security Checklist cho Healthcare Architecture

Layer	Control	Status
Network	TLS 1.3 everywhere	☐
Network	Network segmentation (DMZ, App, Data zones)	☐
Network	WAF enabled	☐
Gateway	Rate limiting	☐
Gateway	Input validation	☐
Gateway	CORS restrictions	☐
Identity	Keycloak SSO	☐
Identity	MFA for clinical users	☐
Identity	Session timeout < 15 min	☐
Service	OIDC token validation	☐
Service	RBAC/ABAC enforcement	☐
Service	Input sanitization	☐
Database	SSL connections	☐
Database	Row-Level Security	☐
Database	Column encryption for PHI	☐
Database	pgAudit enabled	☐
Messaging	Kafka SSL + message encryption	☐
Logging	Centralized audit trail	☐
Logging	No PHI in logs	☐
Backup	Encrypted backups	☐
Backup	Tested DR procedure	☐

9. Tổng kết

Trong bài học này, chúng ta đã thiết kế:

Healthcare microservices architecture với domain services phù hợp
Network segmentation theo Defense-in-Depth (DMZ, App, Data, Management zones)
Quarkus security stack với OIDC, TLS, security headers
Database-per-Service pattern với event-driven communication qua Kafka
API Gateway security configuration
Infrastructure as Code cho secure deployment

Bài tập

Vẽ kiến trúc hệ thống y tế của bạn theo mô hình Defense-in-Depth
Xác định data flow của PHI qua các microservices và network zones
Setup Docker Compose environment với TLS enabled cho tất cả services

◀ Bài trước	Bài tiếp theo ▶
Bài 1: Tổng quan Bảo mật Dữ liệu Y Tế - HIPAA, HL7 FHIR & Luật Việt Nam	Bài 3: Phân loại Dữ liệu Y Tế (PHI/ePHI) và Đánh giá Rủi ro

Bài 2: Thiết kế Kiến trúc Microservices cho Y tế — Quarkus Stack Blueprint
