Bài 3: U-Net Architecture & Denoising Basics

1. Giới thiệu: Tại sao U-Net là trái tim của Diffusion Models?

Trong bài trước, bạn đã hiểu forward process thêm noise vào ảnh theo từng timestep. Bây giờ câu hỏi là: mô hình nào sẽ học cách khử noise (denoise) — tức là đảo ngược quá trình đó? Câu trả lời là U-Net.

U-Net ban đầu được thiết kế cho bài toán image segmentation trong y khoa (2015, Ronneberger et al.). Kiến trúc đặc biệt của nó — encoder-decoder với skip connections — giúp bảo toàn chi tiết spatial trong khi học được features ở nhiều mức độ trừu tượng. Đây chính xác là điều diffusion models cần.

Exam tip: Trong assessment, bạn sẽ phải implement U-Net từ đầu. Hiểu rõ chiều tensor qua mỗi layer là chìa khóa. NVIDIA DLI yêu cầu bạn viết code chạy đúng, không chỉ hiểu lý thuyết.

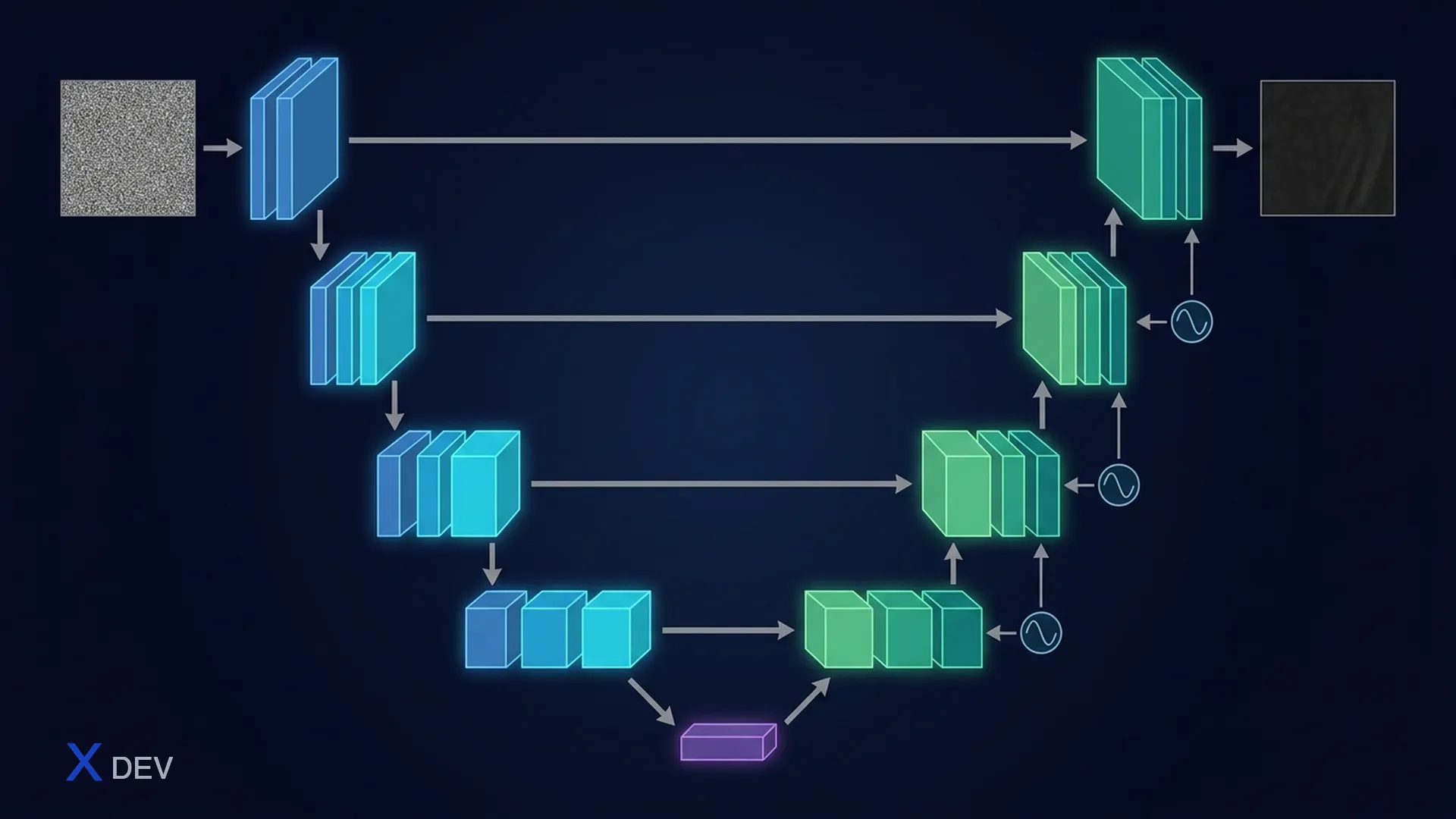

2. U-Net Architecture: Encoder-Decoder với Skip Connections

2.1 Tổng quan kiến trúc

U-Net có hình chữ "U" với 3 phần chính:

• Encoder (Contracting Path): giảm spatial resolution, tăng số channels — học features trừu tượng cao
• Bottleneck: spatial nhỏ nhất, channels lớn nhất — nắm bắt global context
• Decoder (Expanding Path): tăng spatial resolution, giảm số channels — khôi phục chi tiết
• Skip Connections: nối trực tiếp encoder features sang decoder tương ứng — bảo toàn fine-grained details

U-Net Architecture cho Diffusion (input 64×64×1)
═══════════════════════════════════════════════

          ENCODER                              DECODER
     (Contracting Path)                   (Expanding Path)

  ┌─────────────────┐                 ┌─────────────────┐
  │  64 × 64 × 1    │   Input Image   │  64 × 64 × 1    │  Output (denoised)
  └────────┬────────┘                 └────────▲────────┘
           │                                    │
           ▼                                    │
  ┌─────────────────┐  skip connection  ┌─────────────────┐
  │  64 × 64 × 64   │ ───────────────► │  64 × 64 × 64   │  UpBlock + Concat
  │  Conv→GN→GELU   │   (concatenate)   │  Conv→GN→GELU   │
  └────────┬────────┘                 └────────▲────────┘
           │ Downsample                        │ Upsample
           ▼                                    │
  ┌─────────────────┐  skip connection  ┌─────────────────┐
  │  32 × 32 × 128  │ ───────────────► │  32 × 32 × 128  │  UpBlock + Concat
  │  Conv→GN→GELU   │   (concatenate)   │  Conv→GN→GELU   │
  └────────┬────────┘                 └────────▲────────┘
           │ Downsample                        │ Upsample
           ▼                                    │
  ┌─────────────────┐  skip connection  ┌─────────────────┐
  │  16 × 16 × 256  │ ───────────────► │  16 × 16 × 256  │  UpBlock + Concat
  │  Conv→GN→GELU   │   (concatenate)   │  Conv→GN→GELU   │
  └────────┬────────┘                 └────────▲────────┘
           │ Downsample                        │ Upsample
           ▼                                    │
  ┌──────────────────────────────────────────────┐
  │              8 × 8 × 512                      │
  │           BOTTLENECK                          │
  │     Conv → GN → GELU → Conv → GN             │
  │  (smallest spatial, largest channels)         │
  └───────────────────────────────────────────────┘

  + Timestep Embedding ──► inject vào MỌI ResidualBlock qua linear projection

2.2 Encoder Path (Contracting)

Mỗi level của encoder thực hiện:

1. Convolution: 3×3 conv với padding=1 (giữ nguyên spatial size)
2. Group Normalization: normalize theo groups thay vì batch
3. GELU Activation: non-linearity mượt hơn ReLU
4. Downsample: giảm spatial resolution đi 2× (có thể dùng stride=2 conv hoặc Rearrange Pooling)

Qua mỗi level, số channels tăng gấp đôi và spatial giảm đi một nửa. Ví dụ:

2.3 Decoder Path (Expanding)

Ngược lại với encoder, decoder tăng spatial và giảm channels:

1. Upsample: tăng spatial resolution lên 2× (thường dùng nn.Upsample hoặc nn.ConvTranspose2d)
2. Concatenate với skip connection từ encoder cùng level
3. Convolution → GroupNorm → GELU: xử lý features concat

Exam tip: Khi concatenate skip connection, số channels sẽ gấp đôi tạm thời. Ví dụ: upsample output có 256 channels + skip có 256 channels = 512 channels đầu vào conv. Đây là lỗi phổ biến khi implement — chú ý in_channels của conv sau concat!

2.4 Skip Connections — Tại sao quan trọng?

Không có skip connections, decoder phải "đoán" lại tất cả chi tiết spatial chỉ từ bottleneck 8×8 — gần như không thể. Skip connections cho phép:

• Gradient flow: gradient chảy trực tiếp từ loss về encoder layers sâu — training dễ hơn
• Detail preservation: encoder ở level cao giữ edges, textures — decoder dùng lại thay vì phải học lại
• Multi-scale features: decoder nhận cả high-level (từ bottleneck) và low-level (từ skip) features

3. Key Components: GroupNorm, GELU, Rearrange Pooling

3.1 Group Normalization

Trong diffusion models, batch size thường rất nhỏ (4-8) vì mỗi image chiếm nhiều GPU memory. Batch Normalization hoạt động kém với small batch vì statistics (mean, variance) tính trên batch không ổn định.

Group Normalization giải quyết bằng cách chia channels thành groups và normalize trong mỗi group, cho từng sample riêng biệt — không phụ thuộc batch size.

Group Normalization vs Batch Normalization
══════════════════════════════════════════

Batch Normalization:              Group Normalization:
  normalize theo N (batch)          normalize theo group trong C

  ┌───┬───┬───┬───┐               ┌───┬───┬───┬───┐
  │ N │   │   │   │               │   │   │   │   │  N (batch)
  ├───┼───┼───┼───┤               ├───┼───┼───┼───┤
  │   │   │   │   │  C            │ G1│ G1│ G2│ G2│  C (channels)
  ├───┼───┼───┼───┤  (channels)   ├───┼───┼───┼───┤  chia thành groups
  │   │   │   │   │               │ G1│ G1│ G2│ G2│
  ├───┼───┼───┼───┤               ├───┼───┼───┼───┤
  │   │   │   │   │  H×W          │   │   │   │   │  H×W
  └───┴───┴───┴───┘               └───┴───┴───┴───┘
     ▲                                 ▲
     normalize cột (across N)          normalize block (within group)
     ⚠ batch nhỏ → unstable           ✓ independent of batch size

import torch.nn as nn

# GroupNorm: chia 64 channels thành 8 groups (mỗi group 8 channels)
norm = nn.GroupNorm(num_groups=8, num_channels=64)

# Với input shape (B, 64, 32, 32):
# - Chia 64 channels thành 8 groups, mỗi group 8 channels
# - Tính mean, var trên (8, 32, 32) = 8192 elements per group per sample
# - Normalize riêng cho mỗi sample, mỗi group

x = torch.randn(4, 64, 32, 32)
out = norm(x)  # shape: (4, 64, 32, 32) — không đổi shape

3.2 GELU Activation

GELU (Gaussian Error Linear Unit) là activation function tiêu chuẩn trong các mô hình hiện đại (Transformers, Diffusion Models). Khác với ReLU "cứng" (cắt âm về 0), GELU mượt và cho phép một phần giá trị âm "rò rỉ" qua.

Công thức: GELU(x) = x · Φ(x), trong đó Φ(x) là CDF của standard normal distribution.

Activation Functions Comparison
═══════════════════════════════

 Output                              Output
   │     ReLU                          │     GELU
   │      ╱                            │      ╱
   │     ╱                             │    ╱
   │    ╱                              │  ╱
───┼───╱────── Input            ───┼──╱─────── Input
   │  ╱                              ╱│
   │ ╱                              ╱ │
   │╱  (hard cutoff at 0)         ╱  │  (smooth curve, allows
   │                             ╱    │   small negative values)

 ReLU(x) = max(0, x)           GELU(x) = x · Φ(x)
 ⚠ Dead neurons problem         ✓ Smoother gradient flow
 ⚠ Not differentiable at 0      ✓ Better for deep networks

import torch.nn as nn

# Cách 1: dùng module
activation = nn.GELU()
out = activation(x)

# Cách 2: dùng functional
import torch.nn.functional as F
out = F.gelu(x)

# Cách 3: approximate (nhanh hơn, DLI course dùng cách này)
activation = nn.GELU(approximate='tanh')

3.3 Rearrange Pooling (Space-to-Channel)

Rearrange Pooling là kỹ thuật downsample thay thế cho MaxPool/AvgPool. Thay vì loại bỏ thông tin (MaxPool chọn max, AvgPool lấy trung bình), Rearrange "gấp" spatial dimensions vào channel dimension — giữ lại toàn bộ thông tin.

Rearrange Pooling: (B, C, 2H, 2W) → (B, 4C, H, W)
════════════════════════════════════════════════════

Input: (B, C, 4, 4)                   Output: (B, 4C, 2, 2)

Channel c:                             4 channels (mỗi cái là 1 "vị trí"):
┌───┬───┬───┬───┐                     Channel c_0:    Channel c_1:
│ a │ b │ e │ f │                     ┌───┬───┐       ┌───┬───┐
├───┼───┼───┼───┤                     │ a │ e │       │ b │ f │
│ c │ d │ g │ h │      ────►         ├───┼───┤       ├───┼───┤
├───┼───┼───┼───┤   Rearrange        │ i │ m │       │ j │ n │
│ i │ j │ m │ n │                     └───┴───┘       └───┴───┘
├───┼───┼───┼───┤
│ k │ l │ o │ p │                     Channel c_2:    Channel c_3:
└───┴───┴───┴───┘                     ┌───┬───┐       ┌───┬───┐
                                       │ c │ g │       │ d │ h │
Spatial: 4×4, Channels: C             ├───┼───┤       ├───┼───┤
                                       │ k │ o │       │ l │ p │
                                       └───┴───┘       └───┴───┘

                                       Spatial: 2×2, Channels: 4C
                                       ✓ KHÔNG mất thông tin!

from einops import rearrange

def rearrange_downsample(x):
    """Downsample by rearranging spatial dims into channels.
    (B, C, H, W) -> (B, 4C, H/2, W/2)
    """
    return rearrange(x, 'b c (h p1) (w p2) -> b (c p1 p2) h w', p1=2, p2=2)

# Ví dụ:
x = torch.randn(2, 64, 32, 32)
out = rearrange_downsample(x)
print(out.shape)  # torch.Size([2, 256, 16, 16])

# Nếu không dùng einops, dùng PyTorch thuần:
def rearrange_downsample_pure(x):
    B, C, H, W = x.shape
    x = x.reshape(B, C, H // 2, 2, W // 2, 2)
    x = x.permute(0, 1, 3, 5, 2, 4)  # (B, C, 2, 2, H/2, W/2)
    x = x.reshape(B, C * 4, H // 2, W // 2)
    return x

Exam tip: NVIDIA DLI sử dụng Rearrange Pooling thay vì MaxPool. Trong assessment, bạn có thể cần implement hàm này bằng einops.rearrange hoặc PyTorch thuần (reshape + permute). Nhớ rằng channels tăng 4 lần khi spatial giảm 2× mỗi chiều.

4. Sinusoidal Position Embeddings cho Timestep

4.1 Tại sao cần Timestep Embedding?

U-Net cần biết đang ở timestep nào trong quá trình diffusion để denoise phù hợp:

• Timestep lớn (t gần T): ảnh gần như pure noise → model cần khôi phục cấu trúc tổng thể
• Timestep nhỏ (t gần 0): ảnh gần sạch → model chỉ cần tinh chỉnh chi tiết nhỏ

Ta chuyển integer timestep t thành một continuous embedding vector có chiều dài embed_dim, inject vào mọi layer của U-Net.

4.2 Công thức Sinusoidal Embedding

Giống hệt Positional Encoding trong Transformer ("Attention Is All You Need"):

PE(t, 2i)   = sin(t / 10000^(2i/d))
PE(t, 2i+1) = cos(t / 10000^(2i/d))

Trong đó:
  t = timestep (integer: 0, 1, 2, ..., T)
  d = embedding dimension (e.g., 128)
  i = index trong embedding vector (0, 1, 2, ..., d/2 - 1)

Ví dụ với d=8:
  PE(t) = [sin(t/1), cos(t/1), sin(t/100), cos(t/100),
           sin(t/10000), cos(t/10000), sin(t/1000000), cos(t/1000000)]

  → Low frequency terms (cuối): thay đổi chậm → encode "big picture" timestep
  → High frequency terms (đầu): thay đổi nhanh → encode fine timestep differences

4.3 Implement TimestepEmbedding

import torch
import torch.nn as nn
import math

class SinusoidalPositionEmbedding(nn.Module):
    """Chuyển integer timestep thành sinusoidal embedding vector."""

    def __init__(self, embed_dim):
        super().__init__()
        self.embed_dim = embed_dim

    def forward(self, timesteps):
        """
        Args:
            timesteps: (B,) — integer timesteps
        Returns:
            embeddings: (B, embed_dim) — sinusoidal embeddings
        """
        device = timesteps.device
        half_dim = self.embed_dim // 2

        # Tính frequencies: 1/10000^(2i/d) cho i = 0, 1, ..., d/2-1
        exponent = torch.arange(half_dim, device=device).float() / half_dim
        freqs = torch.exp(-math.log(10000.0) * exponent)  # shape: (d/2,)

        # Nhân timestep với frequencies: (B, 1) * (1, d/2) = (B, d/2)
        args = timesteps[:, None].float() * freqs[None, :]

        # Concat sin và cos: (B, d/2) cat (B, d/2) = (B, d)
        embeddings = torch.cat([torch.sin(args), torch.cos(args)], dim=-1)

        return embeddings  # shape: (B, embed_dim)


class TimestepMLPEmbedding(nn.Module):
    """Sinusoidal embedding + MLP projection (dùng trong DLI course)."""

    def __init__(self, embed_dim, hidden_dim=None):
        super().__init__()
        if hidden_dim is None:
            hidden_dim = embed_dim * 4

        self.sinusoidal = SinusoidalPositionEmbedding(embed_dim)
        self.mlp = nn.Sequential(
            nn.Linear(embed_dim, hidden_dim),
            nn.GELU(),
            nn.Linear(hidden_dim, hidden_dim),
        )

    def forward(self, timesteps):
        """
        Args:
            timesteps: (B,) — integer timesteps
        Returns:
            (B, hidden_dim) — projected timestep embeddings
        """
        x = self.sinusoidal(timesteps)  # (B, embed_dim)
        x = self.mlp(x)                 # (B, hidden_dim)
        return x

4.4 Inject Timestep vào U-Net

Timestep embedding được inject vào mỗi ResidualBlock bằng cách:

1. Project timestep embedding về cùng số channels với feature map (dùng nn.Linear)
2. Reshape thành (B, C, 1, 1) để broadcast
3. Cộng vào feature map sau GroupNorm đầu tiên

Timestep Injection Flow
═══════════════════════

timestep t ──► SinusoidalEmbed ──► MLP ──► t_emb (B, hidden_dim)
                                              │
                                    Linear(hidden_dim, C)
                                              │
                                         (B, C, 1, 1)   ← reshape để broadcast
                                              │
Feature Map: ─── Conv ─── GroupNorm ────── (+) ────── GELU ─── Conv ─── ...
                                          add here

Exam tip: Timestep embedding được cộng (add) chứ không phải concatenate vào feature map. Inject xảy ra sau GroupNorm, trước GELU trong mỗi ResidualBlock. Đây là pattern cố định trong DLI course.

5. Build U-Net from Scratch — Step by Step

5.1 ResidualBlock

Đây là building block cơ bản nhất. Mỗi ResidualBlock gồm 2 lớp conv + GroupNorm + GELU, cộng với residual connection và timestep injection.

class ResidualBlock(nn.Module):
    """Residual block with timestep embedding injection.

    Flow: x → Conv1 → GN1 → (+t_emb) → GELU → Conv2 → GN2 → GELU → (+residual) → out
    """

    def __init__(self, in_channels, out_channels, time_emb_dim):
        super().__init__()

        # First conv layer
        self.conv1 = nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1)
        self.norm1 = nn.GroupNorm(num_groups=8, num_channels=out_channels)

        # Second conv layer
        self.conv2 = nn.Conv2d(out_channels, out_channels, kernel_size=3, padding=1)
        self.norm2 = nn.GroupNorm(num_groups=8, num_channels=out_channels)

        # Activation
        self.act = nn.GELU()

        # Timestep embedding projection: project to out_channels
        self.time_mlp = nn.Sequential(
            nn.GELU(),
            nn.Linear(time_emb_dim, out_channels),
        )

        # Residual connection: nếu in_channels != out_channels, cần 1x1 conv
        if in_channels != out_channels:
            self.residual_conv = nn.Conv2d(in_channels, out_channels, kernel_size=1)
        else:
            self.residual_conv = nn.Identity()

    def forward(self, x, t_emb):
        """
        Args:
            x: (B, in_channels, H, W) — input feature map
            t_emb: (B, time_emb_dim) — timestep embedding
        Returns:
            (B, out_channels, H, W)
        """
        residual = self.residual_conv(x)   # (B, out_channels, H, W)

        # First layer
        h = self.conv1(x)                   # (B, out_channels, H, W)
        h = self.norm1(h)                   # normalize

        # Inject timestep embedding
        t = self.time_mlp(t_emb)            # (B, out_channels)
        t = t[:, :, None, None]             # (B, out_channels, 1, 1) broadcast
        h = h + t                           # add timestep info

        h = self.act(h)                     # GELU activation

        # Second layer
        h = self.conv2(h)                   # (B, out_channels, H, W)
        h = self.norm2(h)                   # normalize
        h = self.act(h)                     # GELU activation

        return h + residual                  # residual connection

5.2 DownBlock (Encoder Level)

class DownBlock(nn.Module):
    """Encoder block: ResidualBlock + Rearrange Downsample."""

    def __init__(self, in_channels, out_channels, time_emb_dim):
        super().__init__()
        self.res_block = ResidualBlock(in_channels, out_channels, time_emb_dim)

    def downsample(self, x):
        """Rearrange pooling: (B, C, H, W) -> (B, 4C, H/2, W/2)"""
        B, C, H, W = x.shape
        x = x.reshape(B, C, H // 2, 2, W // 2, 2)
        x = x.permute(0, 1, 3, 5, 2, 4).reshape(B, C * 4, H // 2, W // 2)
        return x

    def forward(self, x, t_emb):
        """
        Args:
            x: (B, in_channels, H, W)
            t_emb: (B, time_emb_dim)
        Returns:
            skip: (B, out_channels, H, W) — for skip connection
            down: (B, out_channels*4, H/2, W/2) — downsampled for next level
        """
        skip = self.res_block(x, t_emb)    # (B, out_channels, H, W)
        down = self.downsample(skip)         # (B, out_channels*4, H/2, W/2)
        return skip, down

5.3 UpBlock (Decoder Level)

class UpBlock(nn.Module):
    """Decoder block: Upsample + Concat skip + ResidualBlock."""

    def __init__(self, in_channels, skip_channels, out_channels, time_emb_dim):
        super().__init__()
        # in_channels = channels from below level after upsample
        # After concat with skip: in_channels + skip_channels
        self.res_block = ResidualBlock(
            in_channels + skip_channels, out_channels, time_emb_dim
        )
        self.upsample = nn.Upsample(scale_factor=2, mode='nearest')

    def forward(self, x, skip, t_emb):
        """
        Args:
            x: (B, in_channels, H, W) — from below level
            skip: (B, skip_channels, 2H, 2W) — skip connection from encoder
            t_emb: (B, time_emb_dim)
        Returns:
            (B, out_channels, 2H, 2W)
        """
        x = self.upsample(x)               # (B, in_channels, 2H, 2W)
        x = torch.cat([x, skip], dim=1)     # (B, in_channels+skip_channels, 2H, 2W)
        x = self.res_block(x, t_emb)        # (B, out_channels, 2H, 2W)
        return x

5.4 Full U-Net Assembly

class UNet(nn.Module):
    """Complete U-Net for diffusion denoising.

    Architecture: 64×64×1 → encoder (3 levels) → bottleneck → decoder (3 levels) → 64×64×1
    Channel progression: 1 → 64 → 128 → 256 → 512 (bottleneck) → 256 → 128 → 64 → 1
    """

    def __init__(self, in_channels=1, base_channels=64, time_emb_dim=128):
        super().__init__()

        # Timestep embedding
        self.time_embed = TimestepMLPEmbedding(
            embed_dim=time_emb_dim,
            hidden_dim=time_emb_dim * 4
        )
        t_dim = time_emb_dim * 4  # output dim of MLP

        # Initial convolution: 1 → 64
        self.init_conv = nn.Conv2d(in_channels, base_channels, kernel_size=3, padding=1)

        # Encoder path
        # Level 1: 64ch, 64×64 → Rearrange → 256ch, 32×32
        self.down1 = DownBlock(base_channels, base_channels, t_dim)        # 64 → 64 (skip), 256 (down)

        # Level 2: 256ch, 32×32 → Rearrange → 512ch, 16×16
        # Cần 1x1 conv trước vì Rearrange tạo 4×channels
        self.down1_proj = nn.Conv2d(base_channels * 4, base_channels * 2, kernel_size=1)
        self.down2 = DownBlock(base_channels * 2, base_channels * 2, t_dim) # 128 → 128 (skip), 512 (down)

        # Level 3: 512ch, 16×16 → Rearrange → 1024ch, 8×8
        self.down2_proj = nn.Conv2d(base_channels * 8, base_channels * 4, kernel_size=1)
        self.down3 = DownBlock(base_channels * 4, base_channels * 4, t_dim) # 256 → 256 (skip), 1024 (down)

        # Bottleneck: 1024ch, 8×8 → 512ch, 8×8
        self.down3_proj = nn.Conv2d(base_channels * 16, base_channels * 8, kernel_size=1)
        self.bottleneck = ResidualBlock(base_channels * 8, base_channels * 8, t_dim)  # 512 → 512

        # Decoder path
        # Level 3: upsample 512 to 16×16, concat skip(256) → 768 → 256
        self.up3 = UpBlock(base_channels * 8, base_channels * 4, base_channels * 4, t_dim)

        # Level 2: upsample 256 to 32×32, concat skip(128) → 384 → 128
        self.up2 = UpBlock(base_channels * 4, base_channels * 2, base_channels * 2, t_dim)

        # Level 1: upsample 128 to 64×64, concat skip(64) → 192 → 64
        self.up1 = UpBlock(base_channels * 2, base_channels, base_channels, t_dim)

        # Final output: 64 → 1
        self.final_conv = nn.Sequential(
            nn.GroupNorm(8, base_channels),
            nn.GELU(),
            nn.Conv2d(base_channels, in_channels, kernel_size=1),
        )

    def forward(self, x, timesteps):
        """
        Args:
            x: (B, 1, 64, 64) — noisy image
            timesteps: (B,) — integer timesteps
        Returns:
            (B, 1, 64, 64) — predicted clean image (or noise)
        """
        # Timestep embedding
        t_emb = self.time_embed(timesteps)    # (B, t_dim)

        # Initial conv
        x = self.init_conv(x)                 # (B, 64, 64, 64)

        # Encoder
        skip1, x = self.down1(x, t_emb)       # skip1: (B,64,64,64), x: (B,256,32,32)
        x = self.down1_proj(x)                 # (B, 128, 32, 32)

        skip2, x = self.down2(x, t_emb)       # skip2: (B,128,32,32), x: (B,512,16,16)
        x = self.down2_proj(x)                 # (B, 256, 16, 16)

        skip3, x = self.down3(x, t_emb)       # skip3: (B,256,16,16), x: (B,1024,8,8)
        x = self.down3_proj(x)                 # (B, 512, 8, 8)

        # Bottleneck
        x = self.bottleneck(x, t_emb)         # (B, 512, 8, 8)

        # Decoder
        x = self.up3(x, skip3, t_emb)         # (B, 256, 16, 16)
        x = self.up2(x, skip2, t_emb)         # (B, 128, 32, 32)
        x = self.up1(x, skip1, t_emb)         # (B, 64, 64, 64)

        # Final output
        x = self.final_conv(x)                 # (B, 1, 64, 64)
        return x

Kiểm tra tensor shapes:

# Verify shapes
model = UNet(in_channels=1, base_channels=64, time_emb_dim=128)
x = torch.randn(2, 1, 64, 64)
t = torch.randint(0, 1000, (2,))
out = model(x, t)
print(f"Input:  {x.shape}")    # torch.Size([2, 1, 64, 64])
print(f"Output: {out.shape}")  # torch.Size([2, 1, 64, 64])
print(f"Params: {sum(p.numel() for p in model.parameters()):,}")

Tensor Shape Flow qua U-Net (base_channels=64)
═══════════════════════════════════════════════

Layer                    Shape                  Notes
──────────────────────────────────────────────────────────
Input                    (B, 1, 64, 64)
init_conv                (B, 64, 64, 64)        Conv2d(1, 64)

down1 ResBlock           (B, 64, 64, 64)        skip1 ─────────────────┐
down1 Rearrange          (B, 256, 32, 32)       4× channels            │
down1_proj               (B, 128, 32, 32)       1×1 conv reduce        │
                                                                        │
down2 ResBlock           (B, 128, 32, 32)       skip2 ──────────┐      │
down2 Rearrange          (B, 512, 16, 16)       4× channels     │      │
down2_proj               (B, 256, 16, 16)       1×1 conv reduce │      │
                                                                 │      │
down3 ResBlock           (B, 256, 16, 16)       skip3 ───┐      │      │
down3 Rearrange          (B, 1024, 8, 8)        4× ch    │      │      │
down3_proj               (B, 512, 8, 8)         reduce   │      │      │
                                                          │      │      │
bottleneck               (B, 512, 8, 8)                   │      │      │
                                                          │      │      │
up3 Upsample             (B, 512, 16, 16)                │      │      │
up3 Concat skip3         (B, 768, 16, 16) ◄──────────────┘      │      │
up3 ResBlock             (B, 256, 16, 16)                        │      │
                                                                  │      │
up2 Upsample             (B, 256, 32, 32)                        │      │
up2 Concat skip2         (B, 384, 32, 32) ◄─────────────────────┘      │
up2 ResBlock             (B, 128, 32, 32)                               │
                                                                         │
up1 Upsample             (B, 128, 64, 64)                               │
up1 Concat skip1         (B, 192, 64, 64) ◄────────────────────────────┘
up1 ResBlock             (B, 64, 64, 64)

final_conv               (B, 1, 64, 64)         Output = denoised image

Exam tip: Trong assessment, bạn sẽ cần tính toán chính xác tensor shapes. Quy tắc nhớ: Rearrange → channels ×4, spatial ÷2. Sau concat skip connection, số channels = channels từ upsample + channels từ skip. Ghi ra giấy nháp trước khi code!

6. Train Denoiser Model

6.1 Bài toán Denoising đơn giản

Trước khi học full diffusion process (nhiều timesteps), ta bắt đầu với bài toán đơn giản:
Thêm Gaussian noise vào ảnh → train U-Net khôi phục ảnh gốc

Simple Denoising Task
═════════════════════

Original Image        Add Noise                Noisy Image        U-Net         Denoised Output
   ┌──────┐          ┌──────┐                  ┌──────┐         ┌─────┐         ┌──────┐
   │ 🖼️   │    +     │ ░░░░ │  noise_level     │ ░🖼️░ │  ────► │U-Net│  ────►  │ 🖼️   │
   │      │          │ ░░░░ │  * N(0,1)        │ ░░░░ │         │     │         │      │
   └──────┘          └──────┘                  └──────┘         └─────┘         └──────┘
      x₀               ε                      x_noisy          predict          x̂₀
                                            = x₀ + σ·ε           x₀

Loss = MSE(x̂₀, x₀) = ‖U-Net(x_noisy, t) - x₀‖²

6.2 Training Loop

import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader
from torchvision import datasets, transforms

# Hyperparameters
BATCH_SIZE = 32
LEARNING_RATE = 1e-4
EPOCHS = 50
NOISE_LEVEL = 0.5  # σ: controls how much noise to add
DEVICE = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

# Dataset: MNIST (grayscale 28×28 → resize to 64×64)
transform = transforms.Compose([
    transforms.Resize((64, 64)),
    transforms.ToTensor(),           # [0, 1]
    transforms.Normalize([0.5], [0.5])  # [-1, 1]
])
dataset = datasets.MNIST(root='./data', train=True, transform=transform, download=True)
dataloader = DataLoader(dataset, batch_size=BATCH_SIZE, shuffle=True)

# Model, optimizer, loss
model = UNet(in_channels=1, base_channels=64, time_emb_dim=128).to(DEVICE)
optimizer = optim.Adam(model.parameters(), lr=LEARNING_RATE)
loss_fn = nn.MSELoss()

# Training loop
for epoch in range(EPOCHS):
    total_loss = 0
    for batch_idx, (images, _) in enumerate(dataloader):
        images = images.to(DEVICE)                    # (B, 1, 64, 64)

        # Random timesteps (mỗi sample một timestep khác nhau)
        timesteps = torch.randint(0, 1000, (images.shape[0],), device=DEVICE)

        # Scale noise level theo timestep (đơn giản: linear scaling)
        noise_scales = (timesteps.float() / 1000.0 * NOISE_LEVEL)  # (B,)
        noise_scales = noise_scales[:, None, None, None]             # (B,1,1,1)

        # Add noise
        noise = torch.randn_like(images)                             # (B, 1, 64, 64)
        noisy_images = images + noise_scales * noise                 # (B, 1, 64, 64)

        # Forward pass: predict clean image
        predicted_clean = model(noisy_images, timesteps)             # (B, 1, 64, 64)

        # Loss: MSE between predicted clean and actual clean
        loss = loss_fn(predicted_clean, images)

        # Backward pass
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        total_loss += loss.item()

    avg_loss = total_loss / len(dataloader)
    print(f"Epoch [{epoch+1}/{EPOCHS}], Loss: {avg_loss:.6f}")

6.3 Visualize Results

import matplotlib.pyplot as plt

@torch.no_grad()
def visualize_denoising(model, dataloader, noise_level=0.5, num_images=5):
    """Hiển thị: Original → Noisy → Denoised."""
    model.eval()
    images, _ = next(iter(dataloader))
    images = images[:num_images].to(DEVICE)

    # Add noise
    timesteps = torch.full((num_images,), 500, device=DEVICE)
    noise = torch.randn_like(images) * noise_level
    noisy = images + noise

    # Denoise
    denoised = model(noisy, timesteps)

    # Plot
    fig, axes = plt.subplots(3, num_images, figsize=(num_images * 3, 9))
    titles = ['Original', 'Noisy', 'Denoised']

    for i in range(num_images):
        for j, (img, title) in enumerate(zip(
            [images[i], noisy[i], denoised[i]], titles
        )):
            ax = axes[j][i]
            # Denormalize: [-1,1] → [0,1]
            img_np = (img.cpu().squeeze() * 0.5 + 0.5).clamp(0, 1).numpy()
            ax.imshow(img_np, cmap='gray')
            ax.set_title(title if i == 0 else '')
            ax.axis('off')

    plt.tight_layout()
    plt.savefig('denoising_results.png', dpi=150)
    plt.show()

visualize_denoising(model, dataloader)

Exam tip: Trong assessment, bạn có thể cần hoàn thành training loop. Nhớ 3 bước quan trọng: (1) thêm noise vào clean image, (2) forward pass qua U-Net với noisy image + timestep, (3) tính MSE loss giữa predicted và original. Đừng quên truyền timestep vào model!

7. Cheat Sheet — U-Net & Denoising

8. Practice Questions

Các câu hỏi dưới đây mô phỏng coding assessment trong NVIDIA DLI. Hãy thử code trước khi xem đáp án!

Q1: Implement ResidualBlock with Timestep Injection

Complete the forward method of the ResidualBlock below. The block should apply two conv layers with GroupNorm and GELU, inject the timestep embedding after the first normalization, and add a residual connection.

class ResidualBlock(nn.Module):
    def __init__(self, in_ch, out_ch, t_dim):
        super().__init__()
        self.conv1 = nn.Conv2d(in_ch, out_ch, 3, padding=1)
        self.norm1 = nn.GroupNorm(8, out_ch)
        self.conv2 = nn.Conv2d(out_ch, out_ch, 3, padding=1)
        self.norm2 = nn.GroupNorm(8, out_ch)
        self.act = nn.GELU()
        self.time_proj = nn.Linear(t_dim, out_ch)
        self.res_conv = nn.Conv2d(in_ch, out_ch, 1) if in_ch != out_ch else nn.Identity()

    def forward(self, x, t_emb):
        # TODO: implement this method
        pass

def forward(self, x, t_emb):
    residual = self.res_conv(x)

    h = self.conv1(x)
    h = self.norm1(h)

    # Inject timestep: project t_emb to out_ch, reshape for broadcasting, add
    t = self.time_proj(t_emb)          # (B, out_ch)
    t = t[:, :, None, None]            # (B, out_ch, 1, 1)
    h = h + t

    h = self.act(h)

    h = self.conv2(h)
    h = self.norm2(h)
    h = self.act(h)

    return h + residual

Q2: What happens if you remove skip connections from U-Net?

Consider the following modified U-Net that does NOT use skip connections in the decoder:

# Original (with skip connections):
x = self.upsample(x)
x = torch.cat([x, skip], dim=1)  # concat skip
x = self.res_block(x, t_emb)

# Modified (WITHOUT skip connections):
x = self.upsample(x)
# skip connection removed!
x = self.res_block(x, t_emb)

What will happen to the denoised output? Choose all that apply:

• A) Output will be blurry, losing fine details
• B) Model fails to compile due to shape mismatch
• C) Training loss will increase significantly
• D) Model produces identical output regardless of input

Q3: Calculate output shapes through each U-Net level

Given the following U-Net configuration, fill in the missing tensor shapes:

# Config: in_channels=1, base_channels=32, image_size=32×32
# Using Rearrange Pooling for downsampling

x = input                  # Shape: (B, 1, 32, 32)
x = init_conv(x)           # Shape: (B, 32, 32, 32)

# Encoder Level 1
skip1, x = down1(x)        # skip1: (B, 32, 32, 32),  x after rearrange: ???
x = proj1(x)               # Shape: ???

# Encoder Level 2
skip2, x = down2(x)        # skip2: ???,  x after rearrange: ???
x = proj2(x)               # Shape: ???

# Bottleneck
x = bottleneck(x)          # Shape: ???

# Decoder Level 2
x = upsample(x)            # Shape: ???
x = cat(x, skip2)          # Shape: ???
x = res_block(x)           # Shape: ???

# Decoder Level 1
x = upsample(x)            # Shape: ???
x = cat(x, skip1)          # Shape: ???
x = res_block(x)           # Shape: ???

x = final_conv(x)          # Shape: (B, 1, 32, 32)

x = input                  # (B, 1, 32, 32)
x = init_conv(x)           # (B, 32, 32, 32)

# Encoder Level 1
skip1 = res1(x)            # skip1: (B, 32, 32, 32)
x = rearrange(skip1)       # (B, 128, 16, 16)      ← 32×4=128, 32/2=16
x = proj1(x)               # (B, 64, 16, 16)       ← 1×1 conv reduce

# Encoder Level 2
skip2 = res2(x)            # skip2: (B, 64, 16, 16)
x = rearrange(skip2)       # (B, 256, 8, 8)         ← 64×4=256, 16/2=8
x = proj2(x)               # (B, 128, 8, 8)         ← 1×1 conv reduce

# Bottleneck
x = bottleneck(x)          # (B, 128, 8, 8)

# Decoder Level 2
x = upsample(x)            # (B, 128, 16, 16)       ← spatial ×2
x = cat(x, skip2)          # (B, 192, 16, 16)       ← 128+64=192
x = res_block(x)           # (B, 64, 16, 16)        ← project down

# Decoder Level 1
x = upsample(x)            # (B, 64, 32, 32)        ← spatial ×2
x = cat(x, skip1)          # (B, 96, 32, 32)        ← 64+32=96
x = res_block(x)           # (B, 32, 32, 32)        ← project down

x = final_conv(x)          # (B, 1, 32, 32)

Q4: Implement SinusoidalPositionEmbedding class

Implement the forward method that converts integer timesteps to sinusoidal embeddings:

class SinusoidalPositionEmbedding(nn.Module):
    def __init__(self, embed_dim):
        super().__init__()
        self.embed_dim = embed_dim  # must be even

    def forward(self, timesteps):
        """
        Args:
            timesteps: (B,) — integer timesteps
        Returns:
            (B, embed_dim) — sinusoidal embeddings
        """
        # TODO: implement using formula:
        # PE(t, 2i) = sin(t / 10000^(2i/d))
        # PE(t, 2i+1) = cos(t / 10000^(2i/d))
        pass

import math

def forward(self, timesteps):
    device = timesteps.device
    half_dim = self.embed_dim // 2

    # Step 1: Compute frequency terms
    # exp(-log(10000) * i/(d/2)) = 1/10000^(i/(d/2)) for i in [0, d/2)
    freqs = torch.exp(
        -math.log(10000.0) * torch.arange(half_dim, device=device).float() / half_dim
    )

    # Step 2: Outer product of timesteps and frequencies
    # (B, 1) * (1, d/2) → (B, d/2)
    args = timesteps[:, None].float() * freqs[None, :]

    # Step 3: Apply sin and cos, concatenate
    embeddings = torch.cat([torch.sin(args), torch.cos(args)], dim=-1)
    # Result shape: (B, embed_dim)

    return embeddings

Q5: Debug U-Net — Output is always the mean of the training set

A student implemented a U-Net for denoising but the output always looks like the blurry average of MNIST digits regardless of input. Review the code below and find the bug:

class BuggyUpBlock(nn.Module):
    def __init__(self, in_channels, out_channels, time_emb_dim):
        super().__init__()
        self.upsample = nn.Upsample(scale_factor=2, mode='nearest')
        # BUG: Notice in_channels here — where is the skip connection?
        self.res_block = ResidualBlock(in_channels, out_channels, time_emb_dim)

    def forward(self, x, skip, t_emb):
        x = self.upsample(x)
        # BUG: skip connection is received but never used!
        x = self.res_block(x, t_emb)
        return x


class BuggyUNet(nn.Module):
    def __init__(self):
        super().__init__()
        # ... encoder and bottleneck (correct) ...

        # Decoder — uses BuggyUpBlock
        self.up3 = BuggyUpBlock(512, 256, t_dim)  # skip not concatenated
        self.up2 = BuggyUpBlock(256, 128, t_dim)   # skip not concatenated
        self.up1 = BuggyUpBlock(128, 64, t_dim)    # skip not concatenated

What is the bug and how do you fix it?

class FixedUpBlock(nn.Module):
    def __init__(self, in_channels, skip_channels, out_channels, time_emb_dim):
        super().__init__()
        self.upsample = nn.Upsample(scale_factor=2, mode='nearest')
        # FIX: in_channels = in_channels + skip_channels (after concat)
        self.res_block = ResidualBlock(
            in_channels + skip_channels, out_channels, time_emb_dim
        )

    def forward(self, x, skip, t_emb):
        x = self.upsample(x)
        x = torch.cat([x, skip], dim=1)  # FIX: concatenate skip connection!
        x = self.res_block(x, t_emb)
        return x

Exam tip: Trong real assessment, debugging exercises thường liên quan đến shape mismatches hoặc missing connections. Khi model output trông "bình thường" nhưng blurry và giống nhau cho mọi input — nghĩ ngay đến skip connections bị thiếu hoặc sai. Luôn in tensor shapes ở mỗi layer khi debug!
